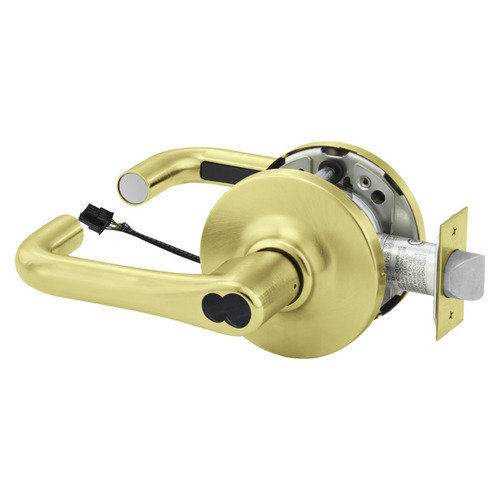

Sargent RX2860-10G71-12V GJ 4 Electric Cylindrical Lock Satin Brass

Electrified Cylindrical Lock, Fail Secure, 12V, GJ Design, LFIC Prep, Less Core, RX Switch, Satin Brass The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements. The 10 Line is the standard for institutional applications.

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSargent
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSargent RX2860-10G71-12V GJ 4 Electric Cylindrical Lock Satin Brass
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorSatin Brass
height9.0
height_AttribCase Height
length20.75
length_AttribCase Length
MPN, SKURX2860-10G71-12V GJ 4
qtyInStock0
tierPrice11096.24
width15.0
width_AttribCase Width
GradeGrade 1
HandNon Handed
PowerHard Wired
Color Code606/US4
Case Length20.75"
Function71-Electromechanical Fail Secure
Door Thickness1-3/4" to 2"
Cylinder TypeSargent LFIC Prep Less Core
Fire Rated3 Hours {A}
OriginUSA
BAA QualifiedYes
Package Height4.25"
Package Length8.25"
Package Volume249.8203125
Package Width7.125"
Amp Draw500mA
Bolt Protection1/2"
Case Height9"
Case Volume2801.25
Case Width15"
Latch Backset Dim2-3/4"
Latch Number10-3192
Latch TypeDead Latch (Guarded)
Lever/Knob DesignJ - Lever
Lock Face Size2-1/4" x 1-1/8"
Operating Voltage12VDC
Rose/Escutcheon DesignG - Rose
ScrewsCombination
Special MarksFull size/large format interchangeable core, Fire rated 3 Hours {A}
Strike Height4-7/8"
Strike Number808
Strike TypeASA
Strike Width1-1/4"
Base MaterialBrass
Switch TypeRX

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareRX2860-10G71-12V GJ 4111 @ $1096.24
