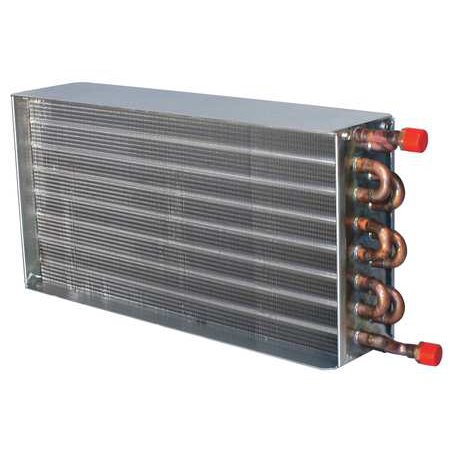

Heating Coil, Fluid Type Hot Water, Air Flow 1500 cfm, Flow Capacity 5.0 gpm, Casing Length 24-3/8 In., Casing Depth 6 In., Casing Height 15-1/8 In., Face Area 2.50 sq. ft., Supply and Return Connection 3/4 In., Connection Type MPT Copper, Number of Feeds 1, Casing Type Slip and Drive, Casing Material 16 ga. Galvanized Steel, Number of Rows 1, Coils Per Bank 1, Fin Type Sine, Fin Material Aluminum, Fin Length 24 In., Fin Thickness 0.006 In., Fin Height 15 In., Fins per Inch 10 Features Item: Heating Coil Number of Feeds: 1 Number of Rows: 1 Air Flow: 1500 cfm Flow Capacity: 5.0 gpm Supply and Return Connection: 3/4" Total Capacity: 48.7 mbh Tube Material: Copper Fin Material: Aluminum Tube Outside Dia.: 5/8" Fluid Type: Hot Water Fins per Inch: 10 Casing Depth: 6" Casing Height: 15-1/8" Casing Length: 24-3/8" Casing Material: 16 ga. Galvanized Steel Casing Type: Slip and Drive Coils Per Bank: 1 Connection Type: MPT Copper Entering Dry Bulb: 55 Degrees F Face Area: 2.50 sq. ft. Fin Height: 15" Fin Length: 24" Fin Thickness: 0.006" Fin Type: Sine Tube Wall Thickness: 0.2" Leaving Dry Bulb: 85 Degrees F Air Pressure Drop: 0.1 psi

Heating Coil, Fluid Type Hot Water, Air Flow 1500 cfm, Flow Capacity 5.0 gpm, Casing Length 24-3/8 In., Casing Depth 6 In., Casing Height 15-1/8 In., Face Area 2.50 sq. ft., Supply and Return Connection 3/4 In., Connection Type MPT Copper, Number of Feeds 1, Casing Type Slip and Drive, Casing Material 16 ga. Galvanized Steel, Number of Rows 1, Coils Per Bank 1, Fin Type Sine, Fin Material Aluminum, Fin Length 24 In., Fin Thickness 0.006 In., Fin Height 15 In., Fins per Inch 10 Features Item: Heating Coil Number of Feeds: 1 Number of Rows
