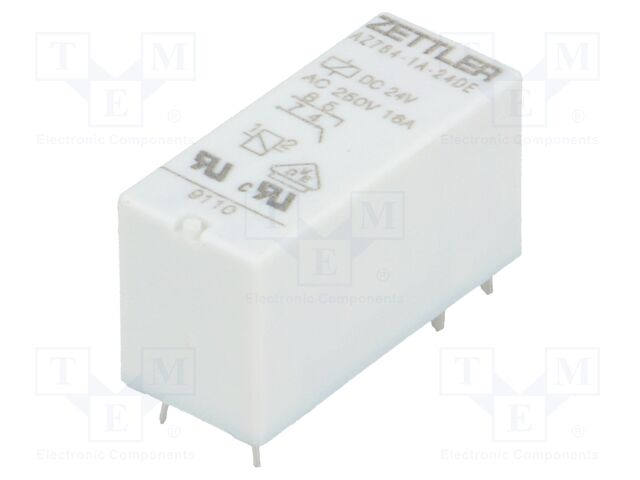

ZETTLER AZ764-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC
ZETTLER AZ764-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VA
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ764-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VAC |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 8567d795dd5e11a28a070290f2b79459. |
| jsonUrlData2 | 1f935302ce04f71e5b93 |
| keywords | ZETTLER, AZ764-1A-24DE, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ764-1A-24DE |
| qtyInStock | 1114 |
| snippet | ZETTLER AZ764-1A-24DE | Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A; 16A/250VA |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 1000 |
| tierPrice1 | 1.65 |
| tierPrice2 | 1.48 |
| tierPrice3 | 1.37 |
| tierPrice4 | 1.24 |
| tierPrice5 | 1.17 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 24V DC |
| Contact current max | 16A |
| AC contacts rating @R | 16A / 250V AC |
| DC contacts rating @R | 16A / 30V DC |
| Switched voltage | max. 300V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 1.44k? |
| Coil voltage min | 16.8V DC |
| Coil voltage max | 49.4V DC |
| Operate time | 7ms |
| Body dimensions | 29x12.7x15.7mm |
| Release time | 3ms |
| Coil power consumption | 200mW |
| Operating temperature | -40...85?C |
| Relay series | AZ764 |
| Contact resistance | 100m? |
| Terminal pitch | 5mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ764-1A-24DE | 1 | 1114 | 1 | 1 @ $1.65, 5 @ $1.48, 20 @ $1.37, 100 @ $1.24, 1000 @ $1.17 |
