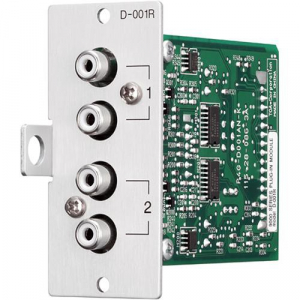

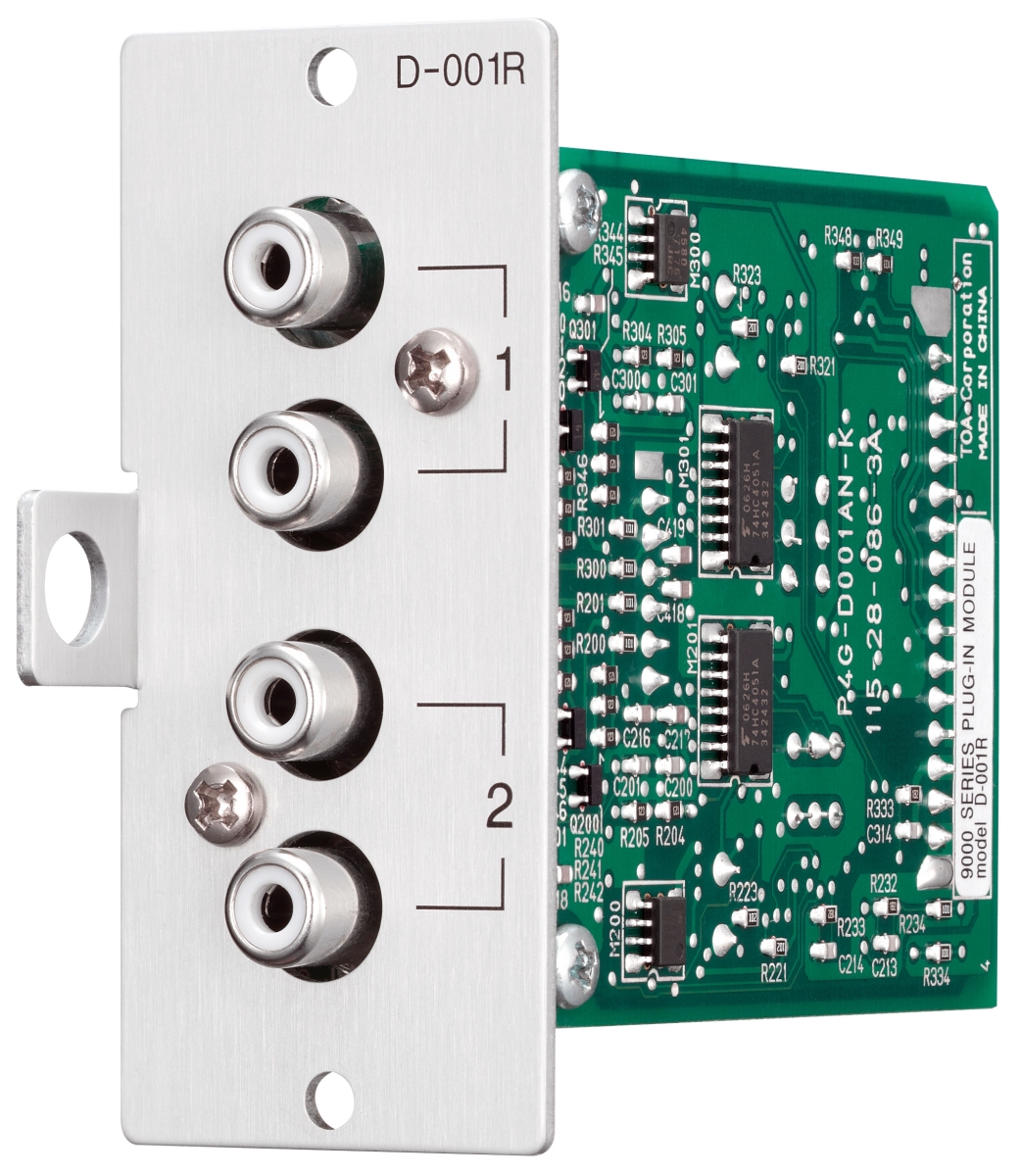

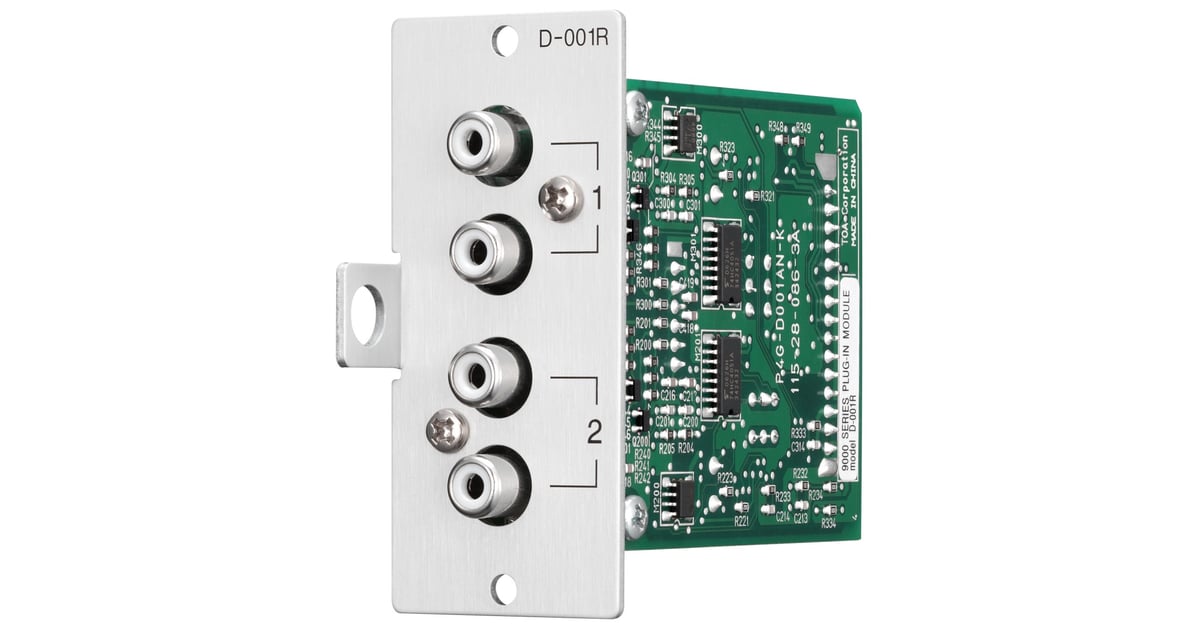

TOA D-001R Line Input Module with DSP Stereo Summing Dual RCA Jacks

TOA D-001R Dual Unbalanced Line Input Module with DSP, Designed For Use with the 9000 Series Amplifiers, Two RCA Phono Inputs per Channel Provides Stereo Summing Key Features - Designed for use with the 9000 Series amplifiers - Two RCA phono inputs per channel providesstereo summing - Digital signal processing (10-Band Parametric EQ, Bass/ Treble, Loudness, High and Low Pass Filters, Compressor) - Input signals to both channels are mixed together - Can process effect for TONE/EQ/COMPRESSOR to two inputs independently Specifications - Power Source: +24V DC, -24V DC, +6V DC - Current Consumption: 20 mA (at +24V DC), 20 mA (at -24V DC), 60 mA (at +6V DC) - Input: 2 channels, 2RCA/ch mixed, 10 kΩ, unbalanced, RCA pin jack Input - Sensitivity: -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable) - Frequency Response: 20Hz - 20kHz, +1, -3 dB - Total Harmonic Distortion + N: 0.008% (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB) - S/N Ratio: Over 70 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB) - Cross Talk: Over 75 dB (at 20 kHz, Input sensitivity: -10 dB) - A/D Converter: 4 bit ADC - Sampling Frequency: 48 kHz - Tone Control: Bass: ±12 dB (at 100 Hz)/Treble: ±12 dB (at 10 kHz) - Parametric Equalizer: 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5 - High-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points - Low-pass Filter: -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points - Compressor: Depth: 1 - 5 - Operating Temperature: -10°C to +40°C (14°F to 104°F) - Finish: Panel: Aluminum, hair-line - Dimensions: 35 (W) x 78 (H) x 91.5 (D) mm (1.38" x 3.07" x 3.6") - Weight: 82 g (0.18 lb)
