Toa Electronics . F-1000BT

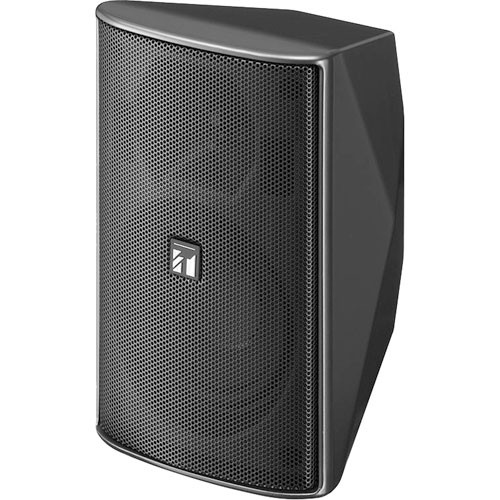

TOA F-1000BT Wide-Dispersion Two-way Speaker System, Black, 15W Rated Power, 90º Horizontal x 90º Vertical Wide Directivity High-frequency Horn, Rear-mounted Rotary Switch The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.or in other locations not directly exposed to rain or snow. Key Features - 8 Ohm 70.7V/100V Transformer - 90º horizontal x 90º vertical wide directivity high-frequency horn - Supplied bracket permits mounting to a wall, ceiling, or an optional speaker stand - Combined use of the supplied bracket and optional mounting bracket allows the speakers to be mounted in many different applications, including pole mounting, clusters, horizontal ceiling mounting, and partition board mounting - A rear-mounted rotary switch allows for speaker impedance selection of low impedance or high impedance - Wall/Ceiling-Mount Bracket Included Specifications - Enclosure: Bass-reflex type - Rated Input: 15W (high impedance) - Power Handling Capacity: Continuous pink noise: 30W (low impedance)/Continuous program: 90W (low impedance) - Rated Impedance: 8 Ω/100V line: 670 Ω (15W), 2 kΩ (5W), 3.3 kΩ (3W), 10 kΩ (1W)/70V line: 330 Ω (15W), 670 Ω (7.5W), 2 kΩ (2.5W), 3.3 kΩ (1.5W), 10 kΩ (0.5 W) - Sensitivity: 87dB (1W, 1m) at installation in 1/2 free sound field - Frequency Response: 85Hz - 20kHz, -10 dB at installation in 1/2 free sound field - Crossover Frequency: 5kHz - Directivity Angle: Horizontal: 90°, Vertical: 9° - Speaker Component: Low frequency: 10 cm (4") cone-type/High frequency: Balanced dome tweeter - Input Terminal: Push-in terminal - Dimensions: 130 (W) x 202 (H) x 131 (D) mm (5.12" x 7.95" x 5.16") - Weight: 2 kg (4.41 lb) (including the supplied brackets)
