T1M-15-F-SV-L Samtec Inc. | Connectors, Interconnects | DigiKey

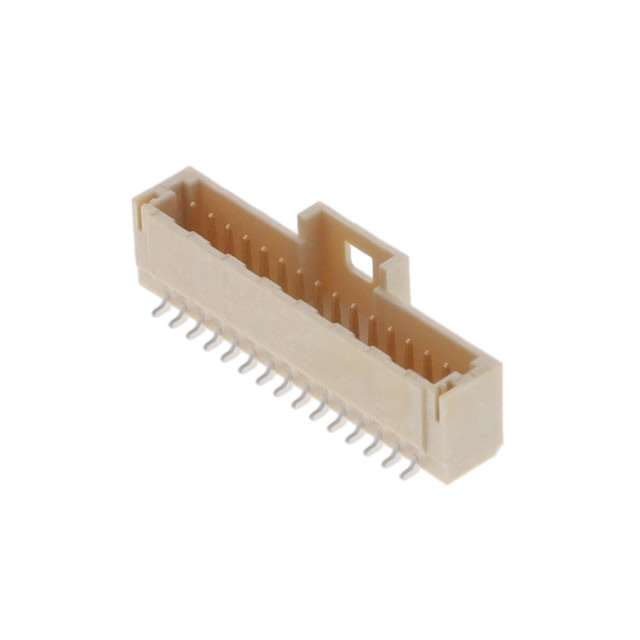

Connector Header Surface Mount 15 position 0.039\

Samtec Inc. . T1M-15-F-SV-L

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrSamtec Inc.
CategoryL1, CategoryConnectors, Interconnects
CategoryL2Rectangular Connectors
CategoryL3Headers, Male Pins
DimensionUnitinch
Extra Product NameT1M-15-F-SV-L Samtec Inc. | Connectors, Interconnects | DigiKey
atoms, moq, multiple, tierMinQty1, Number of Rows1
extraShipping0
height0.217
height_AttribInsulation Height
MPN, Manufacturer Product NumberT1M-15-F-SV-L
packaging, PackageBulk
qtyInStock838
SKU10218826
snippetConnector Header Surface Mount 15 position 0.039\
tierMinQty210
tierMinQty325
tierMinQty450
tierMinQty5100
tierMinQty6250
tierMinQty7500
tierMinQty81,000
tierMinQty92,500
tierPrice14.04000
tierPrice23.66800
tierPrice33.47440
tierPrice43.39360
tierPrice53.23200
tierPrice62.82800
tierPrice72.74720
tierPrice82.34320
tierPrice92.18160
Digi-Key Part NumberT1M-15-F-SV-L-ND
Description1.00 MM DISCRETE WIRE TERMINAL S
Manufacturer Standard Lead Time6 Weeks
Detailed DescriptionConnector Header Surface Mount 15 position 0.039" (1.00mm)
SeriesMicro Mate? T1M
Product StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.039" (1.00mm)
Number of Positions15
Row Spacing - Mating, Contact Length - Mating, Contact Length - Post, Overall Contact Length, Features, Ingress Protection, Mated Stacking Heights, Contact Finish Thickness - Post, Applications-
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeSurface Mount
TerminationSolder
Fastening TypeLocking Ramp
Insulation Height0.217" (5.51mm)
Contact ShapeSquare
Contact Finish - MatingGold
Contact Finish Thickness - Mating3.00?in (0.076?m)
Contact Finish - PostTin
Contact MaterialPhosphor Bronze
Insulation MaterialLiquid Crystal Polymer (LCP)
Operating Temperature-55?C ~ 85?C
Material Flammability RatingUL94 V-0
Insulation ColorNatural
Current Rating (Amps)3.3A per Contact
Voltage Rating250VAC, 353VDC
Base Product NumberT1M-15

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key10218826183811 @ $4.04, 10 @ $3.67, 25 @ $3.47, 50 @ $3.39, 100 @ $3.23, 250 @ $2.83, 500 @ $2.75, 1000 @ $2.34, 2500 @ $2.18
Newark97AH6743111 @ $1.93, 500 @ $1.80, 1000 @ $1.75
SamtecT1M-15-F-SV-L111 @ $3.06, 50 @ $2.50, 100 @ $2.12, 500 @ $1.89, 1000 @ $1.52, 2000 @ $1.40, 5000 @ $1.15, 11010 @ $0.91, 29758 @ $0.84, 64343 @ $0.78
Newark60AJ4615111 @ $2.91, 100 @ $2.38, 250 @ $2.18, 500 @ $2.03, 1000 @ $1.91
