NCP81071BMNTXG ON Semiconductor | Integrated Circuits (ICs) | DigiKey

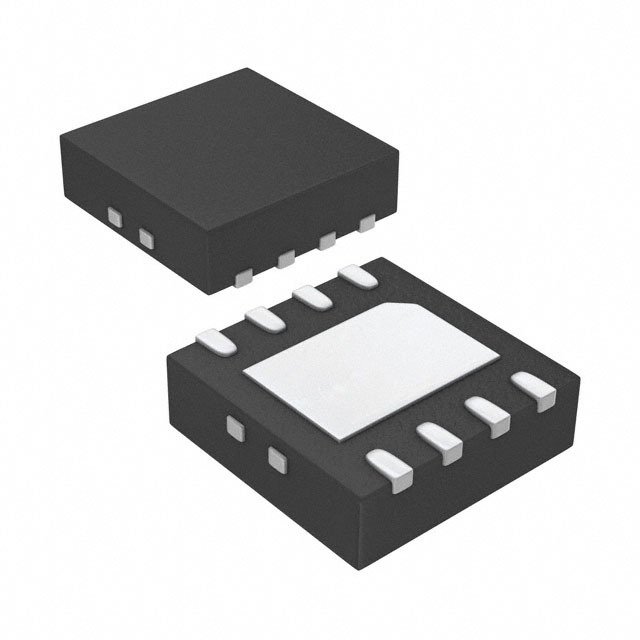

Low-Side Gate Driver IC Non-Inverting 8-WDFN (3x3)
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | ON Semiconductor |
|---|---|
| Extra Product Name | NCP81071BMNTXG ON Semiconductor | Integrated Circuits (ICs) | DigiKey |
| atoms, moq, multiple, tierMinQty1 | 1 |
| extraShipping | 0 |
| MPN | NCP81071BMNTXG |
| qtyInStock | 224 |
| SKU | 8538633 |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 250 |
| tierMinQty6 | 500 |
| tierMinQty7 | 1,000 |
| tierPrice1 | 1.39000 |
| tierPrice2 | 1.23900 |
| tierPrice3 | 1.17600 |
| tierPrice4 | 0.90300 |
| tierPrice5 | 0.79800 |
| tierPrice6 | 0.75600 |
| tierPrice7 | 0.58800 |
| Category | Integrated Circuits (ICs) |
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 1.2V, 1.8V |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Operating Temperature | -40?C ~ 140?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WDFN (3x3) |
| Number of Drivers | 2 |
| Base Product Number | NCP81071 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 8538633 | 1 | 224 | 1 | 1 @ $1.39, 10 @ $1.24, 25 @ $1.18, 100 @ $0.90, 250 @ $0.80, 500 @ $0.76, 1000 @ $0.59 |
| Win Source | NCP81071BMNTXG | 1 | 2026 | 1 | |
 iodParts | NCP81071BMNTXG | 1 | 1 | ||
 Newark | 68Y0464 | 3000 | 3000 | 3000 @ $0.89, 6000 @ $0.81, 12000 @ $0.73, 18000 @ $0.70, 30000 @ $0.68 | |
| Digi-Key | 13442149 | 1 | 1 | 1 @ $1.47, 10 @ $1.31, 25 @ $1.25, 100 @ $1.02, 250 @ $0.96, 500 @ $0.85, 1000 @ $0.73 | |
| Digi-Key | 8539427 | 1000 | 1000 | 1 @ $1.68, 10 @ $1.51, 25 @ $1.43, 100 @ $1.21, 250 @ $1.14, 500 @ $1.00, 1000 @ $0.94 | |
| Digi-Key | 5817253 | 1 | 1 | 1 @ $1.68, 10 @ $1.51, 25 @ $1.43, 100 @ $1.21, 250 @ $1.14, 500 @ $1.00, 1000 @ $0.94 | |
| TME | NCP81071BMNTXG | 1 | 1 | 1 @ $1.39, 5 @ $1.25, 25 @ $1.10, 100 @ $1.00, 500 @ $0.92 |
