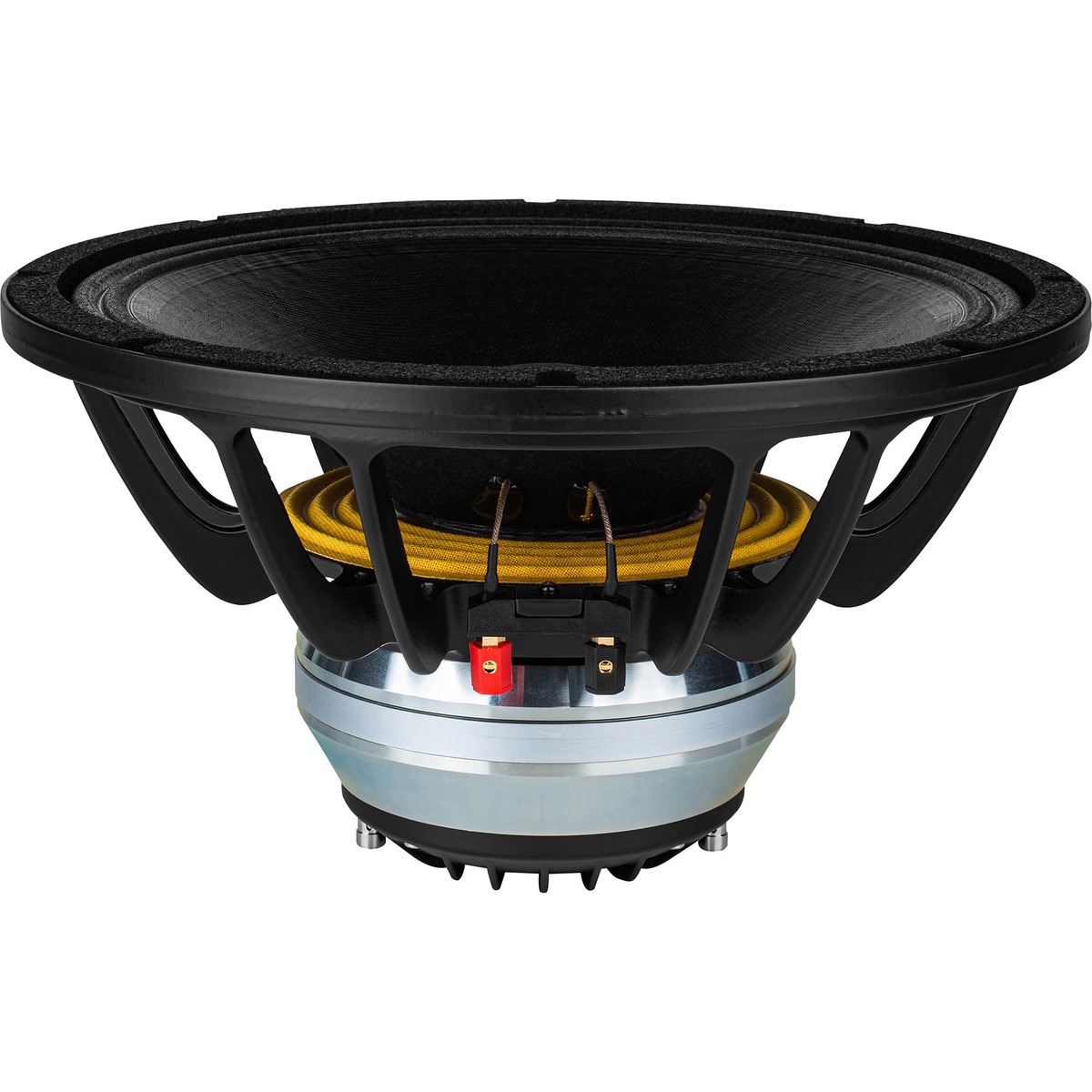

B&C 12CXN88 12" Professional Coaxial Speaker 80 x 80 Degree 8 Ohm

B&C 12CXN88 12" Professional Coaxial Speaker 80 x 80 Degree 8 Ohm. Part Number: 294-5791 by B&C Speakers.

B&C Speakers . 12CXN88

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12CXN88 12" Professional Coaxial Speaker 80 x 80 Degree 8 Ohm
UPC848864062785
Weight18.2
WeightUnitlbs
depth, length7.01
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12CXN88
qtyInStockOnly 2 In Stock
SKU, Part Number294-5791
snippetB&C 12CXN88 12" Professional Coaxial Speaker 80 x 80 Degree 8 Ohm. Part Number: 294-5791 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.7
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8?
Frequency Response50 to 18,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter3.5"
Resonant Frequency (Fs)50Hz
DC Resistance (Re)5?
Voice Coil Inductance (Le)1.05mH
Mechanical Q (Qms)8.3
Electromagnetic Q (Qes)0.23
Total Q (Qts)0.22
Compliance Equivalent Volume (Vas)2.08ft?
Mechanical Compliance of Suspension (Cms)6.34mm/N
BL Product (BL)20.9T?m
Diaphragm Mass Inc Airload (Mms)60g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)522cm?
Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.18"
Depth7.01"
# Mounting Holes8
Sealed Volume0.5ft?
Sealed F3196.3Hz
Vented Volume1.13ft?
Vented F358.5Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com294-57911Only 2 In Stock1
