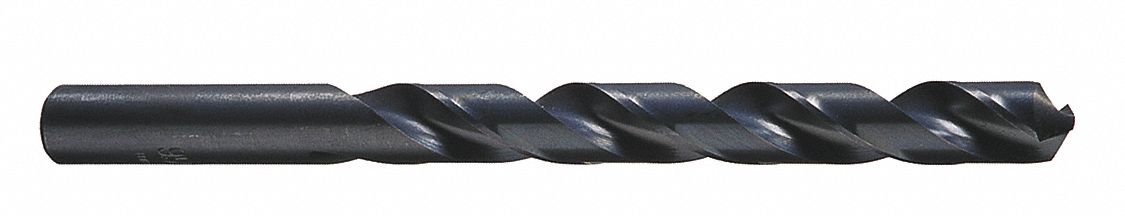

DRILL GP,HSS,STEAM OXIDE,7.70MM

CLE-LINE . 1899-22875

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCLE-LINE
DimensionUnitmm
Extra Product NameDRILL GP,HSS,STEAM OXIDE,7.70MM
UNSPSC20111614
Weight1.0
WeightUnitlbs
diameter, height, width7.7
height_Attrib, width_AttribShank Dia.
length117.0
length_AttribOverall Length
moq, multiple, tierMinQty11
MPN1899-22875
originalCurrency{'currency': 'CAD', 'tierPrice1': '4.68'}
qtyInStock0
SKUGNF1899-22875
tierPrice13.3967720799999994
ItemJobber Length Drill Bit
Decimal Equivalent0.3031
Material - MachiningHigh Speed Steel
Drill Bit Point Angle118 Degrees
Coolant FedNon-Coolant Through
Number of Flutes2
Maximum Drilling Depth1 13/64 in
Cutting Direction, Spiral DirectionRight Hand
Shank Type - MachiningStraight
Shank Length42 mm
Depth:Dia Ratio4xD
Drill Point Length0.0911mm
Series1899
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Primary Material Application ISO CodeK, N, P
Drill Bit Size7.70 mm
Measurement SystemMetric
Finish - MachiningBlack Oxide
Drill Bit Point TypeConventional Point
Flute TypeSpiral
Flute Length75.00 mm
Helix Angle21 Degrees to 34 Degrees
Shank Dia7.7 mm
Overall Length117.00 mm
Drill Length ClassJobber Length
Drill Bit GroupingIndividual
StandardsASME B94.11M, DIN 338
Primary Material ApplicationAluminum, Brass, Bronze, Cast Iron, Copper, Steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caGNF1899-22875111 @ $3.40
