Miller Electric

Miller Electric . 907790

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMiller Electric
DimensionUnitinch
Weight638
WeightUnitlbs
Weight_AttribWeight
countryOfOrigin, Country of Origin (subject to change)United States
depth, length45.375
extendedLead90
extendedQty-2
height32.75
height_AttribHeight
jsonUrlData924526ffbdad25e5923b
length_AttribDepth
moq, multiple, tierMinQty1, Phase1
MPN, Model907790
perItemShipping500.00
qtyInStock0
tierPrice118158.69
urlhttps://www.zoro.com/miller-electric-miller-260a-diesel-engine-driven-welder-907790/i/G8361937/
width20.0
width_AttribWidth
Promotion RestrictionNot eligible for promotion

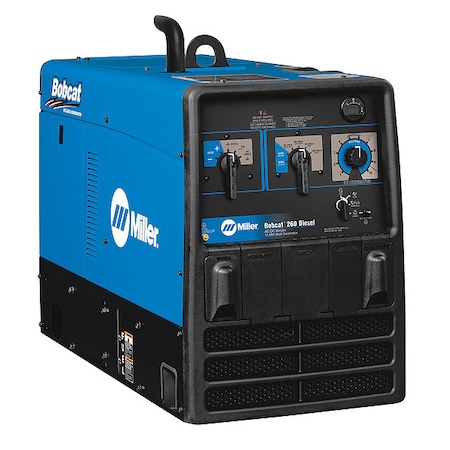

ItemEngine-Driven Welder
SeriesBobcat(TM) 260
PolarityAC/DC

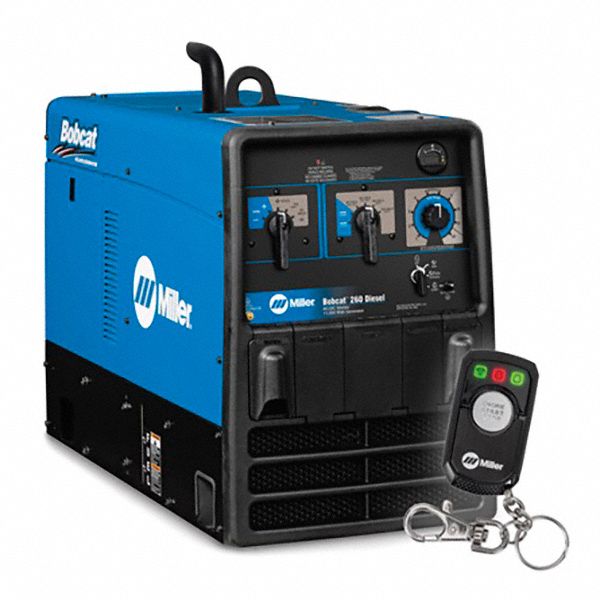

IncludesGFCI Receptacle, Remote Start/Stop
HP, Horsepower19 hp
Fuel Type, Generator Fuel TypeDiesel
Amperage Range40 to 260
Depth45 3/8 in
Width, Overall Width20 in
Rated Output CC/DC260A @ 25V, 100% Duty Cycle
Peak Auxiliary Power11,000 W
Engine BrandKubota
Height32 3/4 in
Rated Output CC/AC225A @ 25 V, 100% Duty Cycle
Continuous Auxiliary Power9,500 W
Start TypeElectric
Stick Welding Maximum Output Current, TIG Welding Maximum Output Current260 A
Stick Welding Output @ Duty Cycle, TIG Welding Output @ Duty Cycle225 A @ 25 V, 100%, 260 A @ 25 V, 100% (DC), 260 A @ 25 V, 60%
Generator Outlets20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Stick Welding Minimum Output Current, TIG Welding Minimum Output Current40 A
MIG Welding Output @ Duty Cycle260 A @ 28 V, 100%, 275 A @ 25 V, 60%
Oil Capacity3 13/32 qt
Fuel Tank Capacity12 gal
Engine ModelKubota D722
ColorBlue
Circuit BreakerYes
Overall Height32.75 in
Fuel Tank Capacity Range10 gal - 20 gal
Horsepower Range15 hp - 30 hp
For Material TypeAluminum, Stainless Steel, Steel
Overall Depth45.38 in
Welding ModeCC/CV
Sound Level80 dB
Rated Output at Duty Cycle (Stick)225 A @ 100%, 260 A @ 60%, 260 A @ 100%
Generator Outlet Type14-50R, 5-20R
Welder Typewith GFCI Receptacles
Max Amperage Range (Stick)150 A - 300 A
