Icm

Get deals on ICM Controls thermostats and controllers for HVAC/R & electrical applications | Worldwide Delivery

Icm . I1010

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameIcm
DimensionUnitinch
GraingerSku32MY31
UPC800442030418
UnitOfMeasureEA
Voltage24VAC
Weight, moq, multiple, tierMinQty1, Stages Heat, Stages Cool1
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height2
jsonUrlData924526ffbdad25e5923b
length6.1
MPNI1010
qtyInStock, Temp Settings per Day, Temperature settings per day4
qtyInStockOverride-2
SKUG8506933
tierPrice1116.01
urlhttps://www.zoro.com/icm-programmable-thermostat-7-5-2-or-5-1-1-day-programs-1-h-1-c-wall-mount-dual-24vac-i1010/i/G8506933/
width6.5

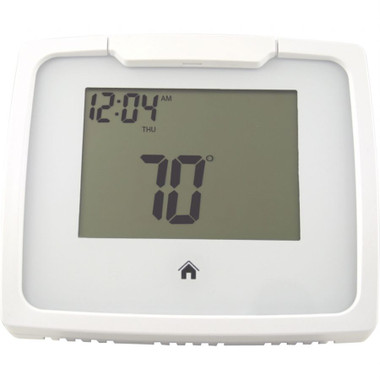

ItemProgrammable Thermostat
Mounting TypeSub-Base
Mounting LocationWall
ColorWhite
System SwitchingAuto-Heat-Cool-Off-Emergency
Height4 47/64"
Width5 1/2"
Dual Transformer Compatible, 750mV Compatible, Humidification Control, Dehumidification Control, WiFi Capability, Millivolt CompatibleNo
Power MethodDual
Programs per Week7, 5-2, or 5-1-1 Day
Temperature Limiting, Automatic Changeover, Batteries Included, Temporary Program Override, Key Pad Lockout, Remote Sensing Capability, Battery Backup, Temporary Temperature Hold, Filter Indicator, Programmable Fan, Low Battery Indicator, Filter Change Reminder, Includes Batteries, Backlit ScreenYes
Depth, Overall Height1 3/16 in
Green Environmental AttributeThermostat has Programmable Feature to Reduce Energy Consumption
IncludesMounting hardware
Footnotes1, 3, 6, 7, 8
For Use WithA/C, Furnace and Heat Pump Systems
Fan Switching, Fan SettingsAuto-On-Hourly
Terminal DesignationsRH, RC, W1/O/B, Y1, G, S1, S2, SC
Display TypeBacklit
Smart ConnectivityNo Connectivity
Programming Capability5-2 Day, 7 Day
Battery Type(2) AA Batteries
Contact Rating18 to 30V AC
Temperature Control Range+45 Degrees to +90 Degrees F
System SettingsAuto-Cool-Emergency Heat-Heat-Off
Overall Width4 3/4 in
ShapeRectangle
Overall Depth5 1/2 in
Temperature Differential1 to 5 Degrees F
Thermostat TypeLow Voltage
Number of Switches13
Compatible System TypeHeat Pump with Aux
Sensor LocationRemote
System/Fan SettingsAuto-Cool-Emergency Heat-Heat-Off/Auto-On-Hourly
Temperature Sensitivity+/-1 Degrees F
Mounting Hole Diameter3/16 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG85069331411 @ $116.01
Raptor SuppliesAH3KNM11
simsupply.comZO-G85069331411 @ $128.84
climatedoctors.comICMI10101411 @ $161.34
