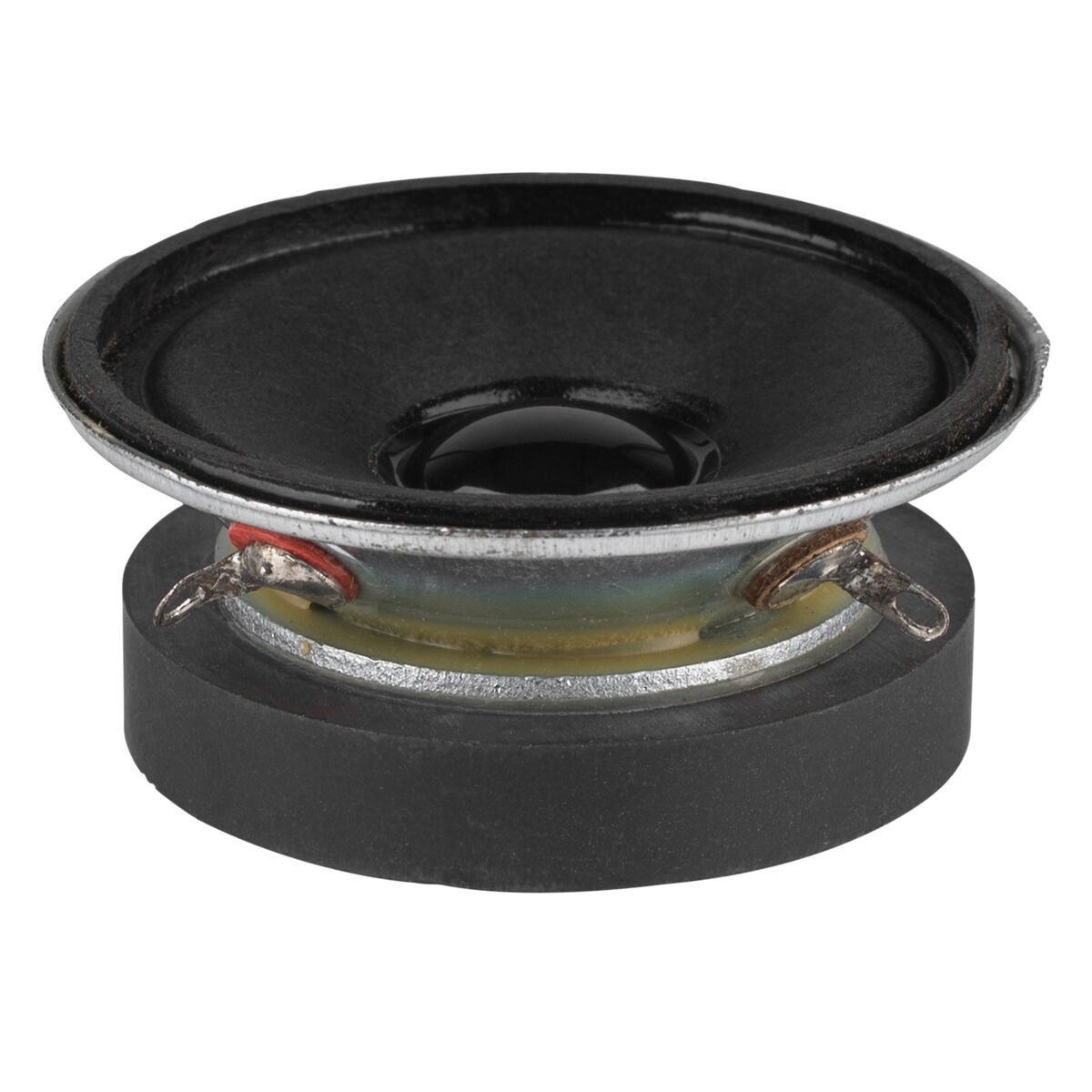

JZ2-678H 2" Paper Cone Pressfit Mount Tweeter 6 Ohms
JZ2-678H 2" Paper Cone Pressfit Mount Tweeter 6 Ohms. Part Number: 289-2358 by Factory Buyouts.
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | Factory Buyouts |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | JZ2-678H 2" Paper Cone Pressfit Mount Tweeter 6 Ohms |
| UPC | 844632014796 |
| Weight | 0.2 |
| WeightUnit | lbs |
| depth, length | 0.89 |
| diameter, height, width | 2.055 |
| height_Attrib, width_Attrib | Overall Outside Diameter |
| length_Attrib | Depth |
| moq, multiple, tierMinQty1 | 1 |
| MPN, Model | JZ2-678H |
| qtyInStock | -2 |
| qtySource | FieldMap |
| SKU, Part Number | 289-2358 |
| snippet | JZ2-678H 2" Paper Cone Pressfit Mount Tweeter 6 Ohms. Part Number: 289-2358 by Factory Buyouts. |
| tierMinQty2 | 10 |
| tierMinQty3 | 50 |
| tierPrice1 | 1.51 |
| tierPrice2 | 1.33 |
| tierPrice3 | 1.20 |
| Unit of Measure | Each |
| Cone / Dome Diameter | 2" |
| Cutout Diameter | 1.95 |
| Tweeter Type | Paper Cone |
| Power Handling (RMS) | 15 Watts |
| Impedance | 6? |
| Frequency Response | 3,500 to 20,000Hz |
| Resonant Frequency (Fs) | 1775Hz |
| DC Resistance (Re) | 5.204? |
| Voice Coil Inductance (Le) | 0.07638mH |
| Mechanical Q (Qms) | 1.804 |
| Electromagnetic Q (Qes) | 8.722 |
| Total Q (Qts) | 1.494 |
| Overall Outside Diameter | 2.055" |
| Depth | 0.89" |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 289-2358 | 1 | -2 | 1 | 1 @ $1.51, 10 @ $1.33, 50 @ $1.20 |
