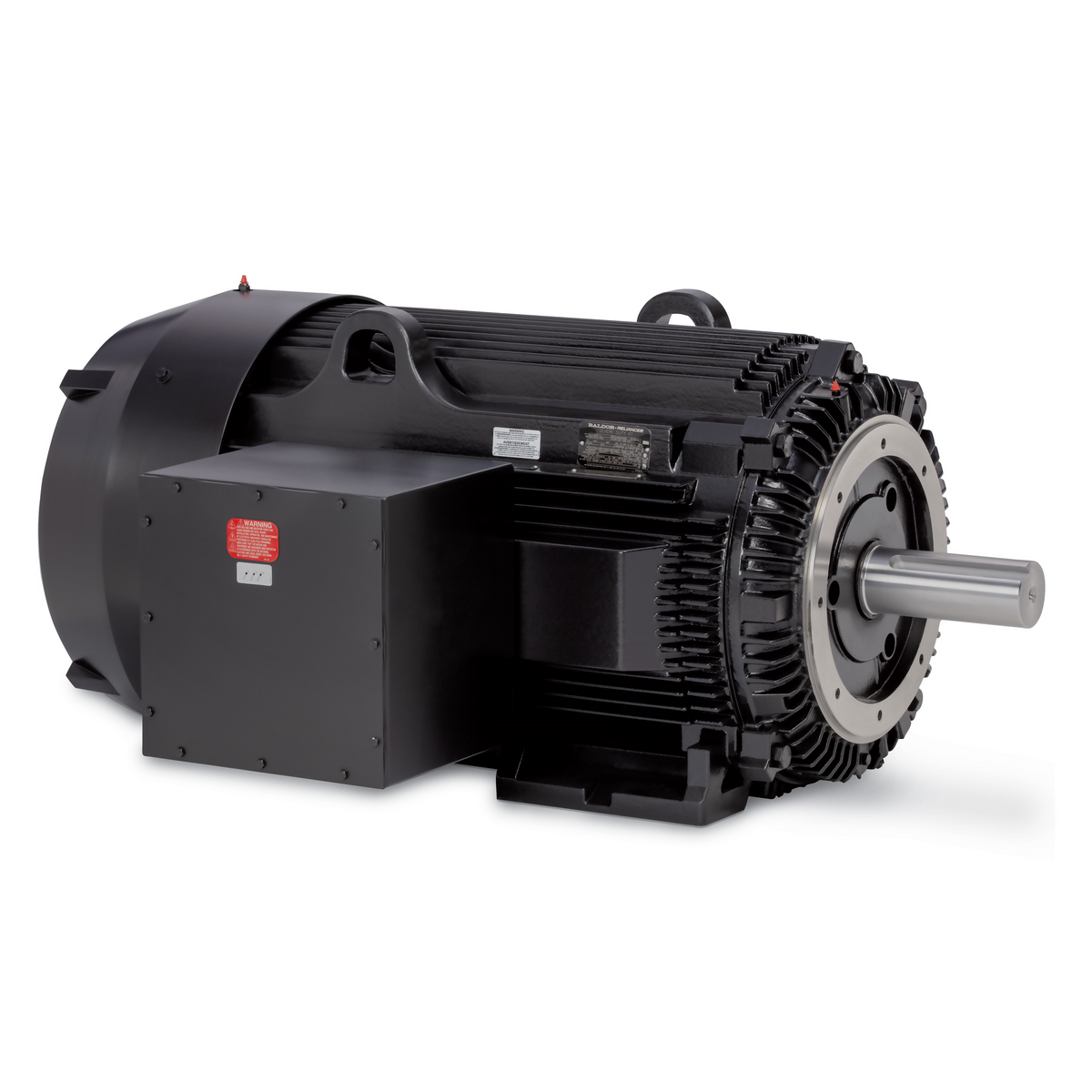

Baldor CXT32504T-4 Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 250RPM: 1785Volts: 460Amps: 276Phase: 3Frame: 449TCEnclosure Material: IronMounting: C-Face/RigidShaft Diameter: 3.375"Overall Length: 53.22"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Bearings: BallEfficiency: 96.2%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cy
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor CXT32504T-4 Three Phase Severe Duty XT Motor |
| Voltage, Volts | 460 |
| Weight | 2820 |
| WeightUnit | lbs |
| diameter, height, width | 3.375 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 53.22 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | CXT32504T-4 |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 34809.00 |
| Product Type | Three Phase |
| HP | 250 |
| RPM | 1785 |
| Amps | 276 |
| Phase | 3 |
| Frame | 449TC |
| Enclosure Material | Iron |
| Mounting | C-Face/Rigid |
| Shaft Diameter | 3.375" |
| Overall Length | 53.22" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Bearings | Ball |
| Efficiency | 96.2% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | A44-9214-5150 |
| Ship Weight | 2820 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| CXT32504T-4 | 1 | -2 | 1 | 1 @ $34809.00 |
