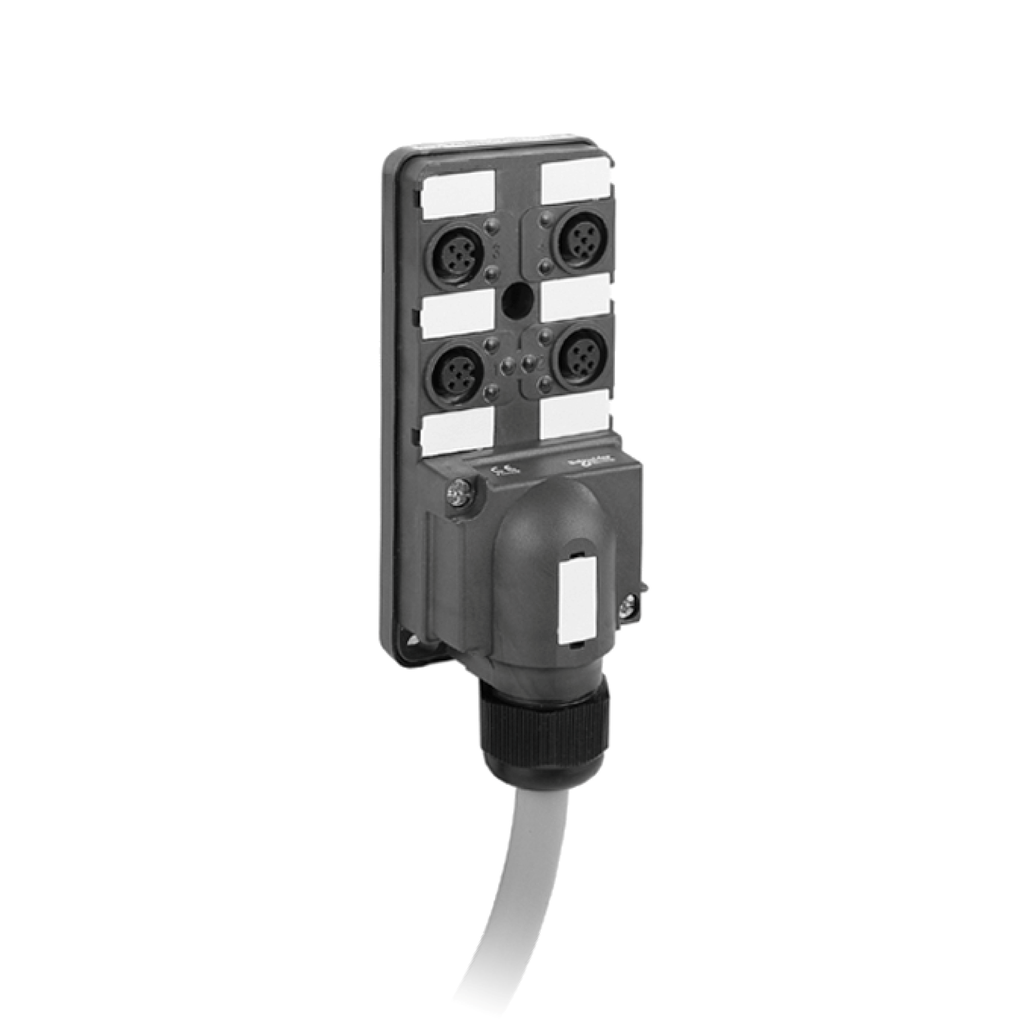

IP67 passive splitter box - cable 10 m - with 4 channels M12 connector | Mayer Electric

Mayer Electric Supply . ABE9C1240L10

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameIP67 passive splitter box - cable 10 m - with 4 channels M12 connector | Mayer Electric
UPC785901623953
Weight1.7
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/TELEMECANIQUE-IP67-passive-splitter-box-cable-10-m-with-4-channels-M12-connector-785901623953
jsonUrlData2e433f3dc-6144-4708-a2df-abd20061ca76
moq, multiple, tierMinQty11
MPNABE9C1240L10
qtyInStock0
SKUSQDABE9C1240L10
tierPrice1114.07
Range Of ProductAdvantys ABE9
Status Ledwithout
Number Of Channels4
Electrical Connection1 pre-wired cable connector, 10 m || 4 female connectors M12 5 pins
Product Or Component TypeIP67 passive splitter box
Warranty18 months
Separation Of Commonswithout or with
Current Of Common16 A 1-1 mm? || 12 A 0.75-0.75 mm?
Current Per Channel4 A
Insulation Groupcategory 3 VDE 0110
Number Of Ways8 ways
[Ue] Rated Operational Voltage24 V DC
Fixing ModeM4 screw fixing
Operating Positionany position
Net Weight1.7 kg
Contact Resistance5000 ?Ohm
China Rohs RegulationX
Circularity ProfileENVEOLI1401005EN
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1401005EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product CertificationscULus
Ambient Air Temperature For Operation-20-80 ?C
Ambient Air Temperature For Storage-40-85 ?C
Shock Resistance30 gn 11 ms EN 68-2-2 || 30 gn 11 ms IEC 68-2-2
Vibration Resistance0.2 gn 57-150 Hz)IEC 68-2-6, FC tests
Ip Degree Of ProtectionIP67 conforming to IEC 529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDABE9C1240L10111 @ $114.07
