Parker

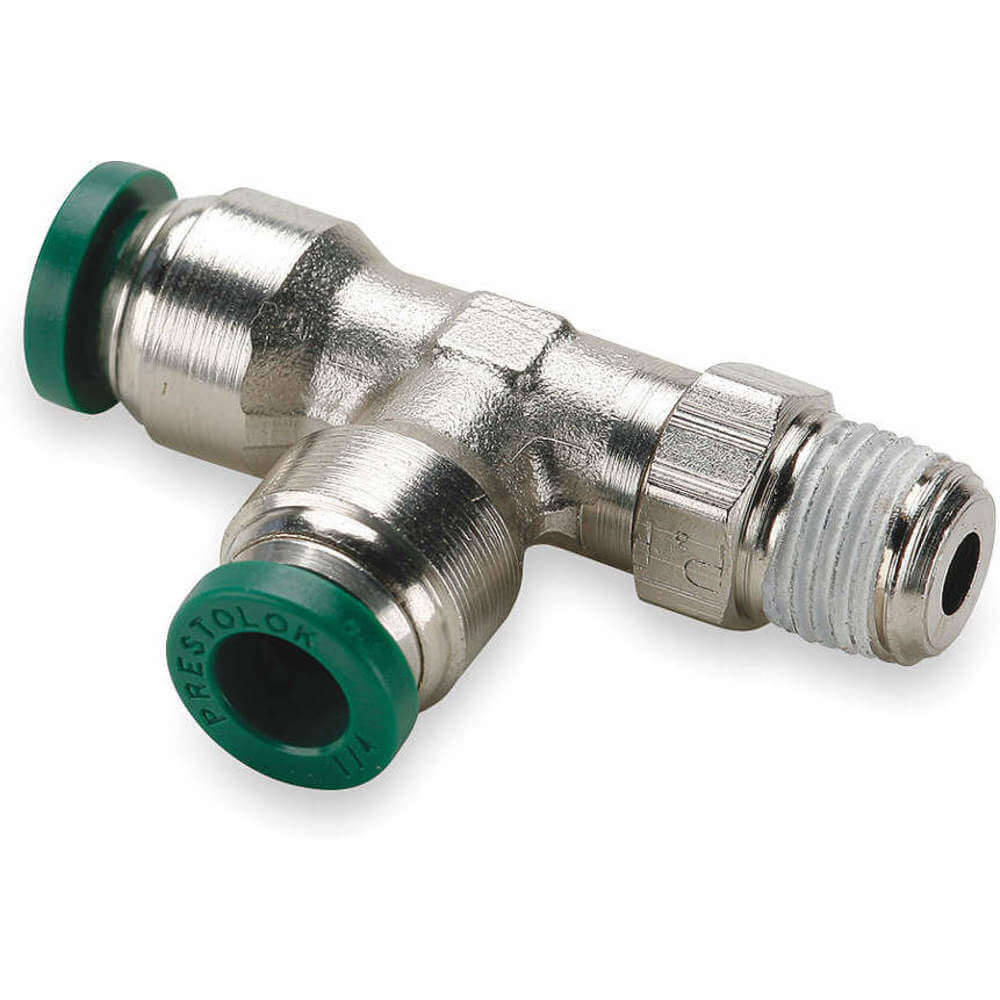

Fitting, 5/16 Inch Outside Diameter, Nickel Plated Brass | 1AJT2 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . W171PLP-5-2

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku1AJT2
UPCNone
UnitOfMeasurePK
Weight0.96
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height2.2
jsonUrlData924526ffbdad25e5923b
length4.5
moq, multiple, tierMinQty11
MPNW171PLP-5-2
qtyInStock7
qtyInStockOverride-2
SKUG1301334
tierPrice1106.69
urlhttps://www.zoro.com/parker-nickel-plated-brass-swivel-male-run-tee-516-in-tube-size-w171plp-5-2/i/G1301334/
width2.7
ItemSwivel Male Run Tee
Tube Fitting MaterialNickel Plated Brass
Specific Fitting Shape, Specific Pipe Fitting ShapeRun Tee
Fitting Connection Type, Pipe Fitting Connection TypeTube x MNPT
Tube Size, Fitting Side B Tube Outer Diameter, Fitting Side C Tube Outer Diameter, For Tube Outside Diameter5/16 in
Pipe Size - Pipe Fitting, Fitting Side A Pipe Size, Fitting Pipe Size1/8 in
Max Pressure, Maximum Operating Pressure300 psi
Basic Pipe Fitting Shape, Fitting ShapeTee
Basic Pipe Fitting MaterialMetal
Pipe Size (Fittings)1/8"
Hex Size1/2 in
Temp Range0 Degrees to 200 Degrees F
Resistance PropertiesCorrosion-Resistant
Fitting MaterialBrass
Includes Pre-Applied Thread SealantYes
Minimum Operating Temperature0 Degrees F
Finish/CoatingNickel Plated
Maximum Operating Temperature200 Degrees F
Compatible Tube MaterialNylon, Polyethylene, Polypropylene, Polyurethane, Semi-Rigid Nylon
Release TypeButton
Vacuum Rating28 inHg
Release Ring MaterialPolyacetal
Fitting Side A Connection TypeMNPTF
Fitting Side B Connection Type, Fitting Side C Connection TypePush-to-Connect
Fitting Body MaterialNickel-Plated Brass
End Connection TypePush-to-Connect, Threaded
For Tube OD5/16 in x 5/16 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG13013341711 @ $106.69
Grainger1AJT211
Raptor SuppliesAA8VVA111 @ $199.20
bscsource.comW171PLP52111 @ $15.89
sustainablesupply.comC19413971-211 @ $91.28
Guardian844264931-211 @ $18.82
simsupply.comZO-G1301334111 @ $111.47
ZoroG2072000951In Stock11 @ $9.65
MRO Stop271014092111 @ $11.40
Airline HydraulicsPARKER W171PLP-5-2111 @ $14.91
National Supply Network844264931-211 @ $21.89
simsupply.comZO-G2072000951311 @ $14.95
