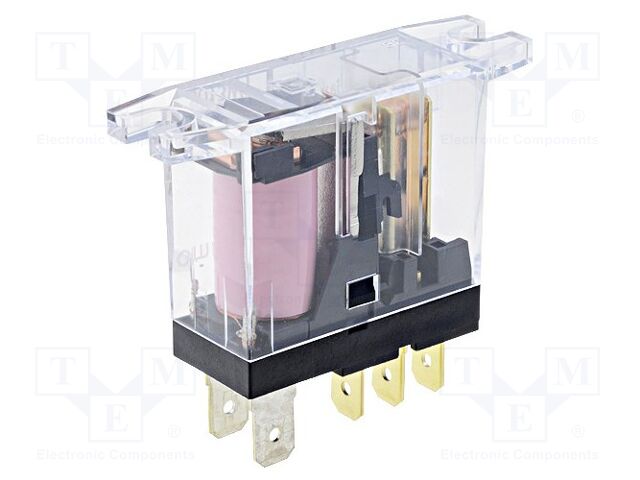

OMRON OCB G2R-1-T 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A
OMRON OCB G2R-1-T 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2R-1-T 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 4221ea5bd0bc7e0afb80c4d2b32ba365. |
| jsonUrlData2 | 05bfa040ab23ea539563 |
| keywords | OMRON OCB, G2R-1-T 24VDC, G2R-1-T-24DC |
| MPN | G2R-1-T 24VDC |
| qtyInStock | 24 |
| SKU | G2R-1-T-24DC |
| snippet | OMRON OCB G2R-1-T 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 10 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 8.59 |
| tierPrice2 | 7.9 |
| tierPrice3 | 6.73 |
| tierPrice4 | 6.26 |
| tierPrice5 | 6.08 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature, |
| Mounting | screw type |
| Coil resistance | 1.1k? |
| Operate time | 15ms |
| Body dimensions | 29x13x25.5mm |
| Release time | 5ms |
| Operating temperature | -40...70?C |
| Relay series | G2R |
| Contact resistance | 30m? |
| Terminal pitch | 5.2mm |
| Coil current | 21.8mA |
| Enclosure description | standard seal |
| Leads | connectors 4,75x0,5mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1-T-24DC | 1 | 24 | 1 | 1 @ $8.59, 5 @ $7.90, 25 @ $6.73, 100 @ $6.26, 500 @ $6.08 |
