Johnson Controls

http://cdn.shopify.com/s/files/1/0332/9992/2988/products/36P596_AS03_1024x.jpg

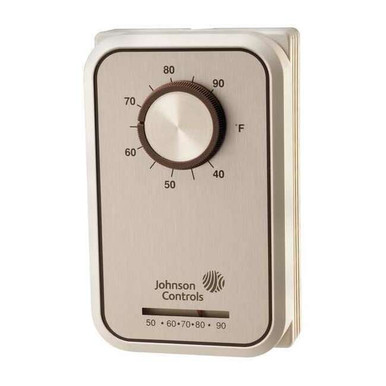

Johnson Controls . T26A-14C

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameJohnson Controls
DimensionUnitinch
GraingerSku36P596
UPCNone
UnitOfMeasureEA
Voltage120/208/240/277VAC
Weight0.9
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height3.6
jsonUrlData924526ffbdad25e5923b
length6.1
moq, multiple, tierMinQty1, Number of Relay Inputs, Number of Switches, Number of Relay Outputs, Number of Poles, Number of Heating Stages1
MPNT26A-14C
qtyInStock47
qtyInStockOverride-2
SKUG4725761
tierPrice1157.40
urlhttps://www.zoro.com/johnson-controls-line-volt-mechanical-tstat-openclose-on-rise-and-openclose-on-fall-t26a-14c/i/G4725761/
width3.7
Switch ActionOpen on Rise
Sensor TypeBi-Metallic Spring
Differential0.7 Degrees F
Display TypeAnalog
Thermostat Control Range, Control Range40 Degrees to 90 Degrees F
Mounting Locationwall
Switch Type, Thermostat Switch TypeSPST
ColorBrown
Width, Depth, Overall Width, Overall Depth3 in
Height, Overall Height5 in
Locked Rotor Amps @ 120V36 A
Enclosure Type, Enclosure NEMA RatingNEMA 1
Thermostat Programmable, Remote Sensing Capability, Remote Sensing Bulb Included, Includes Positive Off, Temperature ReadoutNo
Thermostat Voltage24 to 277V AC
Thermostat ItemLine Voltage Mechanical Thermostat
Inductive Amps @ 208V, Inductive Amps @ 240V, Inductive Amps @ 120V10 A
Locked Rotor Amps @ 240V18 A
Full Load Amps @ 120VAC15 A
ItemLine Volt Mechanical Tstat
Full Load Amps @ 240VAC, Full Load Amps @ 240V AC3 A
Thermostat Heating/CoolingHeating
Pilot Duty Contacts (VA), Pilot Duty Rating125 VA
StandardsUL
TypeHeating/Cooling
Full Load Amps @ 120V AC6 A
Temperature ScaleFahrenheit/Celsius
Stages1H
Contact Rating120V AC, 208V AC, 240V AC, 277V AC
System SettingsOn
Enclosure FinishGold Anodized
Mounting DirectionHorizontal; Vertical
Electrical Connection TypeScrew Terminals
Compatible System TypeElectric Heating
Housing MaterialPlastic
Enclosure ColorBeige
Temperature Differential1.1 Degrees F
Minimum Control Temperature40 Degrees F
Switch Type/ActionSPST, Open on Rise
Temperature Control Range40 Degrees to 75 Degrees F
Housing ColorWhite
Differential TypeFixed
Maximum Control Temperature75 Degrees F
Contact TypeSnap Action
Remote Control FunctionsNo Remote Control Included
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG472576114711 @ $157.40
Grainger36P59611
RadwellT26A-14C11311 @ $176.95
SupplyHouseT26A-14C11
sustainablesupply.comC11347401-211 @ $134.29
uri.comT26A14C1-211 @ $326.10
cappusa.com220096111 @ $138.43
waterpumpsnow.comT26A-14C1-211 @ $158.00
simsupply.comZO-G472576115111 @ $163.40
GalcoT26A-14C-JHSN111 @ $171.84
alliedcontrols.comT26A-14C1Factory Stock11 @ $132.97
grainger.caJHCT26A14C111 @ $217.24
blackhawksupply.comT26A-14C1-211 @ $134.35
