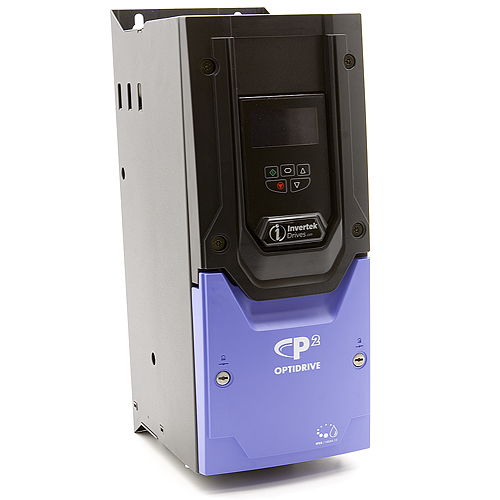

Invertek ODP-2-72075-3HF4N-MN 55kW 75Hp 202A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD

The ODP-2-72075-3HF4N-MN is produced by Invertek and is described as a Invertek ODP-2-72075-3HF4N-MN 55kW 75Hp 202A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD

Invertek . ODP-2-72075-3HF4N-MN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODP-2-72075-3HF4N-MN 55kW 75Hp 202A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP55/NEMA12 OptiDrive P2 Performance VFD
Voltage, Input voltage200 / 240V
Weight96
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length14.2
height50.4
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODP-2-72075-3HF4N-MN
qtyInStock0
SKU6092956
tierPrice19323.00
width21.25984251968504
width_AttribPackaged dimensions width
Frame, Drive dimensions size7
Height50.4 in
Depth14.2 in
Rated power55 kW/75 HP
Phase, Input phases3
Width (in)13
Supply fuse or MCB (type B)250 A
Packaged dimensions depth560 mm (22.05 in)
Supply current continuous205.7 A
Drive dimensions weight89 kg (196.21 lbs)
Max motor cable size, Max supply cable size150 mm? (0.23 in?)
Brake transistorInternal
Supply voltage200-240 V
Output current202 A
Drive dimensions fixings4 x M10
Drive dimensions depth358 mm (14.09 in)
Packaged dimensions weight96 kg (211.64 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height1280 mm (50.39 in)
EMC filterInternal EMC
DisplayTFT display
Packaged dimensions height1420 mm (55.91 in)
Motor output rating55 kW (75 HP)
Drive dimensions width330 mm (12.99 in)
PCB coatingStandard
EnclosureIP55
Packaged dimensions width540 mm (21.26 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092956111 @ $9323.00
driveswarehouse.comODP-2-72075-3HF4N-MN1-211 @ $9323.00
