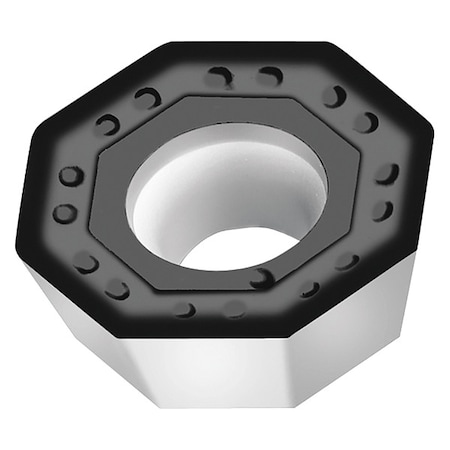

Walter - OCTO-MILL Insert With Hole

Walter . ODHT0504ZZN-F57

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerWalter
DimensionUnitinch
Extra Product NameWalter - OCTO-MILL Insert With Hole
UnitOfMeasureEA
Weight0.16
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
height0.6
length3.9
moq, multiple, qtyInStock10
MPN, ANSI NumberODHT0504ZZN-F57
SKUG9379027
tierMinQty11
tierPrice1215.10
urlhttps://www.zoro.com/walter-walter-octo-mill-insert-with-hole-odht0504zzn-f57/i/G9379027/
width1.6
Insert Application, Cutting Application, Feed TypeMedium
Cutting DirectionNeutral
Coating, Coating ProcessPVD
RakePositive
Super Alloy (S) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Cast Iron (K) CompatibilityNo
Mounting Style, Insert Holding TypeScrew
Steel (P) Compatibility, Chip-Breaker, Stainless (M) Compatibility, Wiper InsertYes
For Use WithF4080 Cutter
Nose Radius0.031"
Grade, Manufacturer GradeWSP45S
Insert Size0504
Insert Thickness0.187"
Lead Angle, Clearance Angle15 Degrees
ItemOctagon Milling Insert
Insert StyleODHT
Insert Shape, ShapeOctagon
No of Edges, Number of Cutting Edges8
ISO Number, ANSI CodeODHT0504ZZN-F57 WSP45S
Workpiece CompatibilityStainless (M), Steel (P)
Inscribed Circle1/2 in
Measurement SystemMetric
Thickness0.187 in
Material - MachiningCarbide
Cutting Edge Length5.26mm
Hole TypeCountersink Hole
Primary Material ApplicationNickel, Stainless Steel, Steel, Titanium
Finish - MachiningTiAlN+Al2O3+Al
Chip-Breaker CodeF57
Included Angle135 Degrees
Secondary Material Application ISO CodeS
Chip-Breaker Style16 Degrees Chipbreaker Groove
Primary Material Application ISO CodeM, P, S
Secondary Material ApplicationNickel, Titanium
Corner Radius0.80mm
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG93790271010101 @ $215.10
