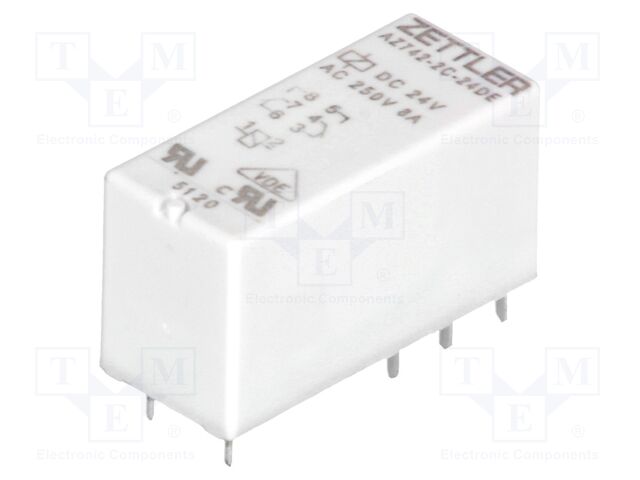

ZETTLER AZ743-2C-24DE | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A
ZETTLER AZ743-2C-24DE | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ743-2C-24DE | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10A |
| atoms, moq, multiple | 1 |
| jsonUrlData | be9c5bdace5c5edd1635820b899cef94. |
| jsonUrlData2 | c9c839ed861c05ce287f |
| keywords | ZETTLER, AZ743-2C-24DE, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ743-2C-24DE |
| qtyInStock | 0 |
| snippet | ZETTLER AZ743-2C-24DE | Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 10 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 240V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 150V DC, |
| Relay variant | miniature |
| Coil resistance | 1.44k? |
| Operate time | 7ms |
| Release time | 4ms |
| Operating temperature | -40...100?C |
| Relay series | AZ743 |
| Contact material | AgCdO |
| Terminal pitch | 5mm |
| Coil current | 17mA |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ743-2C-24DE | 1 | 1 |
