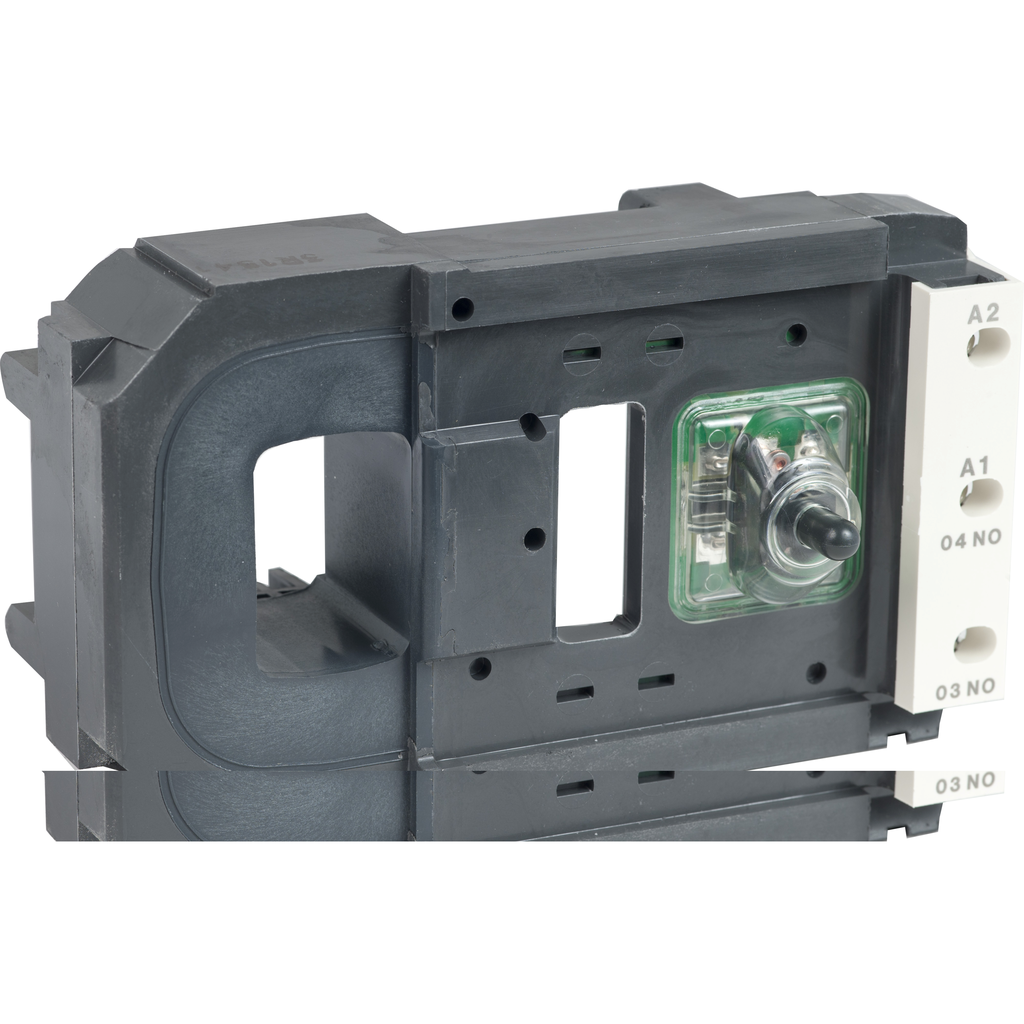

TeSys F - contactor coil - LX1FJ - 110...120 V AC 40...400 Hz | Mayer Electric

Shop SCHNEIDER ELECTRIC at Mayer. TeSys F - contactor coil - LX1FJ - 110...120 V AC 40...400 Hz

Mayer Electric Supply . LX1FJ110

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameTeSys F - contactor coil - LX1FJ - 110...120 V AC 40...400 Hz | Mayer Electric
UPC3389110082005
Weight, moq, multiple, tierMinQty11
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-F-contactor-coil-LX1FJ-110-120-V-AC-40-400-Hz-785901082002
jsonUrlData2aa491c5a-f6c8-400d-9c3e-abd2006275c0
keywordsSQUARE D, Mayer SQUARE D, 785901082002, LX1FJ110
MPNLX1FJ110
qtyInStock0
SKUSQDLX1FJ110
snippetShop SCHNEIDER ELECTRIC at Mayer. TeSys F - contactor coil - LX1FJ - 110...120 V AC 40...400 Hz
tierPrice1386.14
Ambient Air Temperature For Operation-5-55 ?C
Net Weight1 kg
Warranty18 months
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP111201EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Circularity ProfileENVEOLI111214EN_V1
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Control Circuit Voltage Limitsoperational 0.85...1.1 Uc 40...400 Hz 55 ?C) || drop-out 0.3...0.5 Uc 40...400 Hz 55 ?C)
Inrush Power In Va1075-1075 VA 40...400 Hz 0.9 20 ?C)
Coil Technologywithout built-in suppressor module
Hold-In Power Consumption In Va15-15 VA 40...400 Hz 0.3 20 ?C)
Heat Dissipation14-14 W 40...400 Hz
Average Resistance9.8 Ohm inrush 20 ?C || 230 Ohm holding 20 ?C
[Uc] Control Circuit Voltage110...120 V AC 40...400 Hz
Control Circuit TypeAC 40...400 Hz
Range CompatibilityTeSys TeSys F LC1F contactor
Product Or Component Typecontactor coil
RangeTeSys
Inductance Of Closed Circuit1.35 H
Maximum Operating Rate2400 cyc/h 55 ?C
Operating Time100...170 ms opening || 40...75 ms closing
Product CompatibilityLC1F400
Device Short NameLX1FJ
Mechanical Durability10 Mcycles

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLX1FJ110111 @ $386.14
