Transition Networks Stand-Alone Mini Gigabit Ethernet Media Converter - fib

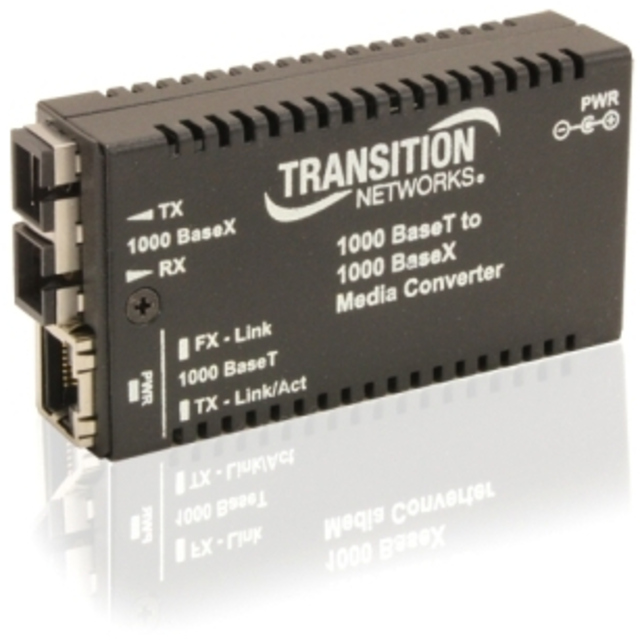

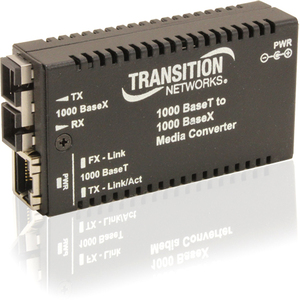

The Transition Networks M/GE-T-SX-01-NA SC mini transceiver/media converter integrates fiber optic cable into a gigabit UTP environment. This mini media converter helps to convert 1000Base-T copper network connection to 1000Base-SX fiber network connection. It features auto-negotiation, auto MDI/MDIX and automatic link restoration. The LED light indicator allows you to know the status of network connection. . Transceiver/media converter converts 1000Base-T copper network connection to 1000Base-SX/LX fiber network connection. Dimensions: 0.85"H x 1.8"W x 3.3"D. Interfaces/port: 1 x Network (RJ-45), 1 x SC. Ethernet technology: Gigabit Ethernet. Media type supported: Multi-mode optical fiber. Wavelength: 850 nm. Maximum data transfer rate: 1 Gbps. Operating range: 1804.46'. Form factor: Desktop, wall mountable, rack-mountable. Power: 7.5 - 13.9 VDC, 2.4 W consumption. LED indicators: Power below RJ-45: On: Power, FX-Link/Act upper left on RJ-45: On: link, flashing: Activity. Fiber integration, extend network distance. Low-latency design, space saving design. Meets RoHS, WEEE standards. Comes with lifetime warranty.

Brand Name: Transition Networks Product Model: M/GE-T-SX-01 Product Name: Mini Gigabit Ethernet Media Converter Marketing Information: Fiber Integration Used in pairs or as a single unit, this mini media converter will ease the integration of fiber optic cabling into copper-rich Gigabit Ethernet environments Extend Network Distance Convert 1000Base-T ports over to 1000Base-SX/LX on a port-by-port basis. Fiber supports the transmission of Gigabit Ethernet data over much longer distances than is possible twisted pair Low-Latency Design As a layer-1 design, this Mini converter will retransmit Gigabit Ethernet signals without any store-and-forward packet inspection delays found in other layer-2 devices Product Type: Transceiver/Media Converter Total Number of Ports: 2 Network (RJ-45): Yes Number of Network (RJ-45) Ports: 1 Number of SC Ports: 1 Media Type Supported: Optical Fiber, Twisted Pair Fiber Mode Supported: Multi-mode Maximum Distance Supported: 1804.46 ft Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T, 1000Base-SX Form Factor: Desktop, Wall Mountable, Rack-mountable Height: 0.9" Width: 1.8" Depth: 3.3"
