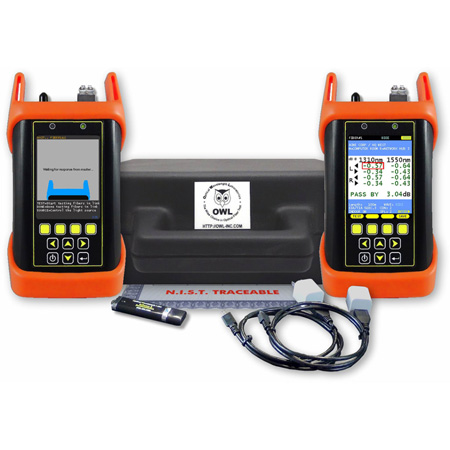

The Optical Wavelength F7BMS Fiber OWL 7 BIDI is a high-accuracy, high-resolution, microprocessor-controlled optical loss test sets (OLTS) capable of performing a wide variety of testing applications, from basic optical loss measurement up to simultaneous bi-directional, dualwavelength fiber link certification. With a wide measurement range and NIST-traceable wavelengths, the Fiber OWL 7 BIDI is ideal for both singlemode and multimode fiber link certification. Enclosed in an attractive hand-held case made from high impact plastic and protected by a protective rubber boot, test readings and graphical help screens can be viewed on the color LCD, and an intuitive 10-key keypad allows for easy data entry. Each Fiber OWL 7 BIDI is powered by re-chargeable lithium polymer batteries, typically allowing up to 50 hours of continuous use. A built-in auto-shutdown feature further conserves battery life. Batteries are re-charged through the USB port via supplied battery chargers.

The Optical Wavelength F7BMS Fiber OWL 7 BIDI is a highaccuracy highresolution microprocessorcontrolled optical loss test sets OLTS capable of performing a wide variety of testing applications from basic optical loss measurement up to simultaneous bidirectional dualwavelength fiber link certification With a wide measurement range and NISTtraceable wavelengths the Fiber OWL 7 BIDI is ideal for both singlemode and multimode fiber link certification Enclosed in an attractive handheld case made from high impact plastic and protected by a protective rubber boot test readings and graphical help screens can be viewed on the color LCD and an intuitive 10key keypad allows for easy data entry Each Fiber OWL 7 BIDI is powered by rechargeable lithium polymer batteries typically allowing up to 50 hours of continuous use A builtin autoshutdown feature further conserves battery life Batteries are recharged through the USB port via supplied battery chargers Features. Fiber OWL 7 BIDI OLTS Quad MM 8501300 and SM 13101550. Used for longterm cable system warranties and assure clients of a job well done. Intuitive Link Wizard guides the setup and reference process with helpful tutorial diagrams via the color LCD. Optical Loss Test Set olts separate transmit and receive ports allow simultaneous dualfiber testingSpecifications. Display Type 28 Color LCD. Battery Type Lithium Polymer. Battery Life MASTER up to 25 hours up to 20 hours REMOTE up to 55 hours up to 50 hours. Autoshutdown Yes. Operating Temperature 14deg to 131degF10deg to 55degC. Storage Temperature 22deg to 158degF 30deg to 70degC. Dimension 287 x 442 x 125. Detector Type InGaAs. Wavelengths 850 980 1300 1310 1490 1550 1625nm. Measurement Range 5 to 70 dBm. Accuracy Uncertainty 015 dB. Display Resolution 001 dB. Measurement Units dBm dB. Connector Type Universal 25mm and 125mm. Data Storage Points 10000. Download Port Connection USB. Software OWLView. Modes of Operation PAIR BIDI CERT LOSS OPM. Length Measurement Range up t
