Albion

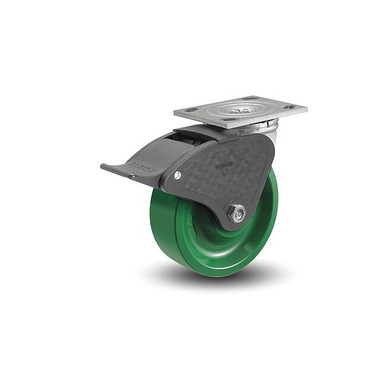

Swivel, Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia.

Albion . 16XI08201ST

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameAlbion
DimensionUnitinch
GraingerSku60RP25
UPCNone
UnitOfMeasureEA
Weight7.95
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height4.8
jsonUrlData924526ffbdad25e5923b
length10.8
moq, multiple, tierMinQty1, Number of Wheels1
MPN16XI08201ST
qtyInStock12
qtyInStockOverride-2
SKUG300712785
tierPrice1115.81
urlhttps://www.zoro.com/albion-8-x-2-non-marking-polyurethane-x-treme-swivel-caster-total-lock-brake-loads-up-to-1000-lb-16xi08201st/i/G300712785/
width9.5
Caster Sub-TypeSwivel
Load Rating1000 lb
Wheel Dia8 in
Wheel Width, Overall Wheel Width2 in
Caster Stem TypeTop Plate
Swivel Raceway TypeDouble Ball
Includes Thread Guards, With Toe PlateNo
Caster Brake Type, Swivel Lock TypeTotal Lock Brake
Wheel Core Material, Wheel Core TypeSolid
Wheel/Tread Hardness70D
Swivel ConstructionKingpin
Number of Mounting Holes4
FeaturesZinc Plating Provides An Attractive Finish Which Increases Corrosion Resistance and Provides Longer Caster Life
Mounting Plate Thickness1/4 in
Wheel/Tread Color, Core ColorGreen
Wheel Bearing TypeRoller
Caster Frame MaterialSteel
Non-Marking, Includes Spanner BushingYes
Outside Bolt Hole Spacing3 in X 3-5/8 in
Swivel Lead1 3/4 in
ApplicationShop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
Swivel Radius8 63/100 in
Frame FinishZinc
Mounting Height9-1/2 in
Mounting Bolt Dia3/8 in
Caster Mounting TypePlate
Tread ShapeStandard
Mounting Plate Bolt Hole PatternB
Wheel/Tread Hardness RatingHard
For Axle Dia1/2 in
Frame ConstructionCold Formed
Wheel/Tread MaterialPolyurethane - X-Treme
Mounting Plate Size4 in X 4-1/2 in
Wheel TypeSolid Polyurethane
Operating Temperature RangeUp to 180?F
ItemMedium Duty Industrial Plate Caster W/ Total Lock Brake
Inside Bolt Hole Spacing2-5/8 in X 3 in
Hub Length2 3/16 in
Load Rating Range1000 to 2999 lb
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG30071278511211 @ $115.81
simsupply.comCU-36305250323511011 @ $179.27
simsupply.comZO-G3007127851711 @ $134.45
