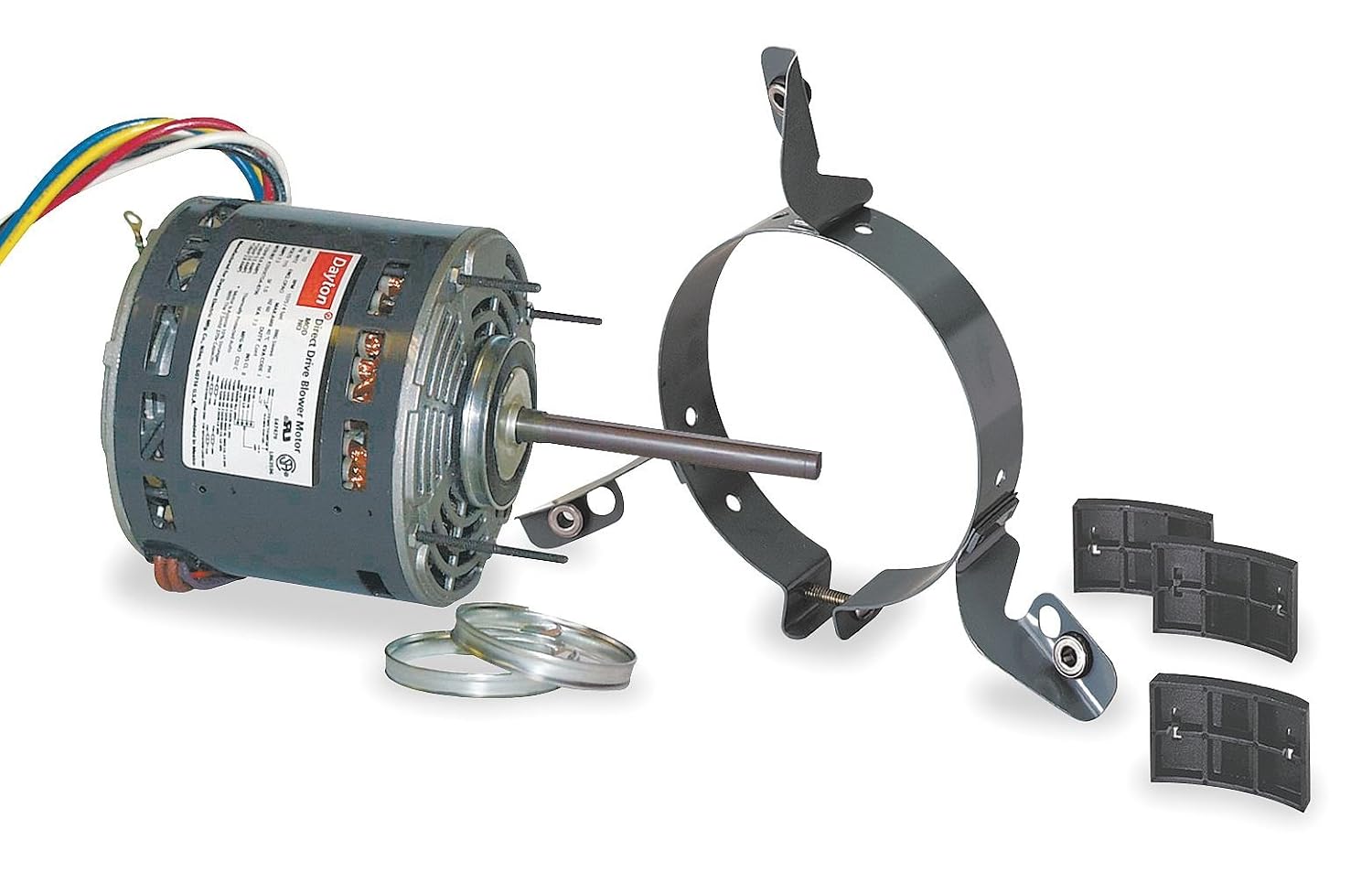

Direct Drive Blower Motor, Motor Application HVAC/R, Motor Sub Application Direct Dr Fan/Blower, Motor Type PSC, Enclosure Open Air-Over, HP 1, Nameplate RPM 1075, Voltage 115, Full Load Amps 14.7, Hz 60, Phase 1, Frame 48YZ, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous Air Over, Number of Speeds 4, Mounting Universal, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8", Length Less Shaft 7-7/16", Overall Length 13-7/16", Shaft Dia. 1/2", Shaft Length 6", Capacitor Included No, Capacitor Required 2MDW2, Ring to Ring Center 7", RPM Range 1001-1100, Application High Efficiency Performance on Furnace Blowers and Other Air-over Shaft-mounted Fan and Blower EquipmentWARNING: California ResidentsThis product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Direct Drive Blower Motor, Motor Application HVAC/R, Motor Sub Application Direct Dr Fan/Blower, Motor Type PSC, Enclosure Open Air-Over, HP 1, Nameplate RPM 1075, Voltage 115, Full Load Amps 14.7, Hz 60, Phase 1, Frame 48YZ, Service Factor 1.0, Max. Ambient Temp. 40 Degrees C, Insulation Class B, Duty Continuous Air Over, Number of Speeds 4, Mounting Universal, Bearings Sleeve, Thermal Protection Auto, Rotation CW/CCW, Body Dia. 5-5/8", Length Less Shaft 7-7/16", Overall Length 13-7/16", Shaft Dia. 1/2", Shaft Length 6", Capacitor Included No, Capacitor Required 2MDW2, Ring to Ring Center 7",
