IXGT32N120A3 IXYS | Discrete Semiconductor Products | DigiKey
IXYS IXGT32N120A3 | Transistor: IGBT; GenX3?; 1.2kV; 32A; 300W; TO26

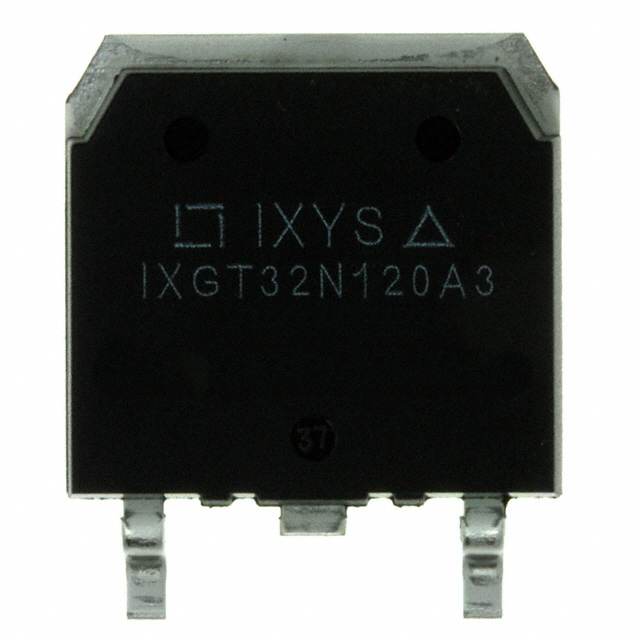

Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXGT32N120A3 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple, tierMinQty1 | 1 |
| MPN | IXGT32N120A3 |
| qtyInStock | 44 |
| SKU | IXGT32N120A3-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierMinQty6 | 1000 |
| tierMinQty7 | 2500 |
| tierMinQty8 | 5000 |
| tierMinQty9 | 9,000 |
| tierPrice1 | 7.57000 |
| tierPrice2 | 6.83700 |
| tierPrice3 | 6.51920 |
| tierPrice4 | 5.40600 |
| tierPrice5 | 4.77000 |
| tierPrice6 | 4.29300 |
| tierPrice7 | 4.13400 |
| tierPrice8 | 3.91140 |
| tierPrice9 | 3.81600 |
| Part Status | Active |
| IGBT Type | PT |
| Vce(on) (Max) @ Vge, Ic | 2.35V @ 15V, 32A |
| Switching Energy, Td (on/off) @ 25?C, Test Condition | - |
| Input Type | Standard |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D?Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268 |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 230 A |
| Power - Max | 300 W |
| Gate Charge | 89 nC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| IXGT32N120A3-ND | 1 | 44 | 1 | 1 @ $7.57, 10 @ $6.84, 25 @ $6.52, 100 @ $5.41, 500 @ $4.77, 1000 @ $4.29, 2500 @ $4.13, 5000 @ $3.91, 9000 @ $3.82 | |
| IXGT32N120A3 | 1 | 1 | 1 @ $12.18, 3 @ $10.95, 10 @ $9.68, 30 @ $8.70 | ||
| Digi-Key | 2045707 | 1000 | 99 | 1000 | 1 @ $10.68, 10 @ $9.65, 100 @ $7.99, 500 @ $6.95, 1000 @ $6.35 |
