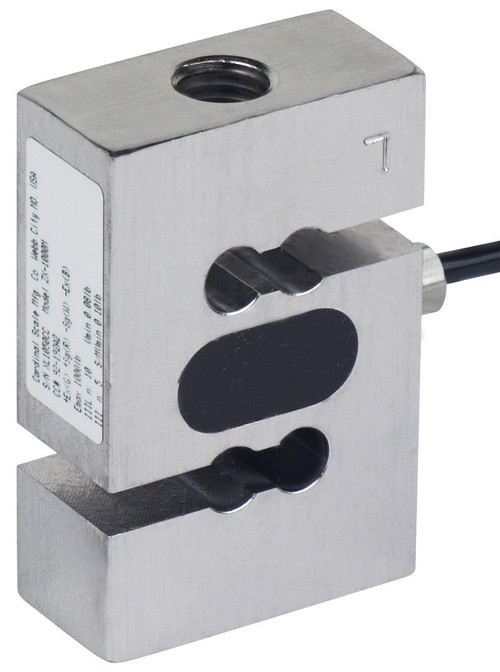

Cardinal Detecto ZX-250 250 lb Stainless Steel S-Beam Load Cell, NTEP - Scales Plus

Buy the top selling Detecto ZX-250 from Scales Plus and receive free product support from our trained technicians for life!

Detecto . ZX-250

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDetecto
DimensionUnitinch
Extra Product NameCardinal Detecto ZX-250 250 lb Stainless Steel S-Beam Load Cell, NTEP - Scales Plus
height3.0
height_AttribHeight
keywordsIndustrial Scales, Digital Scales, Laboratory Balances, Calibration Weights, Cannabis Scales, Jewelry Scales, NTEP Certified Scales, Load Cells
length1.9
length_AttribLength
moq, multiple, tierMinQty11
MPN, SKU, ModelZX-250
qtyInStock0
snippetBuy the top selling Detecto ZX-250 from Scales Plus and receive free product support from our trained technicians for life!
tierPrice1566.1
width0.4
width_AttribWidth
NTEPYes
NTEP CC#92-192A2
CertificationNTEP Approved Class III 1:5000 and IIIL 1:10,000
Capacity250 lb
Safe Overload150% capacity
Ultimate Overload300% capacity
Length1.9"
Height3"
Width0.4"
Hole Threading1/4????-28 NF
Metric Threading (if requested)M6 x 1
ConstructionStainless steel
Cable Color CodeGreen = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield
Rated Excitation5-10 VDC (maximum of 15 V)
Full Scale Output3 mV/V ? 0.1%
Excitation Terminal Resistance389 ? 20 ohms
Signal Terminal Resistance350 ? 5 ohms
Insulation Resistance5000 megohms
Seal TypePotted seal
IP RatingIP67
Cable Length30 ft

Distributor offers

SellerSKUMOQIn stockMultiplePrices
scalesplus.comZX-250111 @ $566.10
