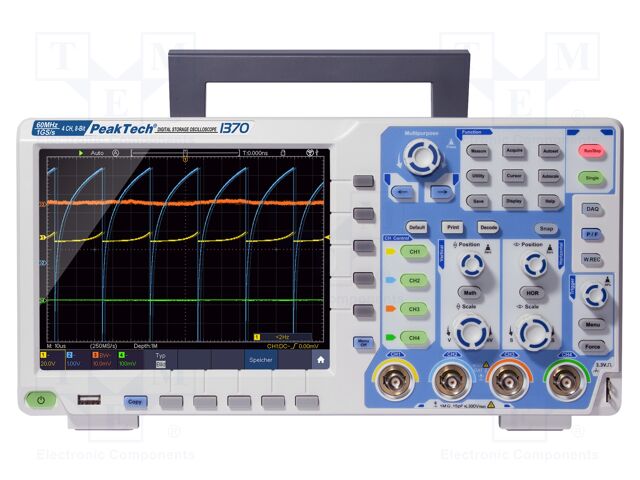

PEAKTECH P 1370 | Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W

PEAKTECH P 1370 | Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24

PEAKTECH . P 1370

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerPEAKTECH
CategoryL1Workplace Equipment
CategoryL2Measuring Instruments
CategoryL3Oscilloscopes and Scopemeters
CategoryL4Digital Oscilloscopes
DimensionUnitm
Extra Product NamePEAKTECH P 1370 | Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24W
atoms, moq, multiple1
jsonUrlDataf30c5cd34906d8ce1be01809a0772146.
jsonUrlData2d0d71a64c5ab594a5ac1
keywordsPEAKTECH, P 1370, PKT-P1370, Workplace Equipment, Measuring Instruments, Oscilloscopes and Scopemeters, Digital Oscilloscopes
length40.0
length_AttribMemory record length
MPNP 1370
qtyInStock0
SKUPKT-P1370
snippetPEAKTECH P 1370 | Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; 24
Type of oscilloscopedigital
Number of channels4
Band60MHz
Sampling1Gsps
Memory record length40Mpts
Kind of display usedLCD TFT 8"
Trigger modesautomatic,
Triggerfalling-edge,
Trigger sourceCH1,
Time base2n...1ks/div
Max input voltage400V
Vertical resolution8bit
Input couplingAC, DC, GND
Trigger couplingAC,
Horizontal accuracy?3%
Rise time?5.8ns
Input impedance1M?/15pF
Input sensitivity1mV/div...10V/div
Plug variantEU
Power consumption24W
Operating temperature0...40?C
Body dimensions340x180x90mm
Related itemsPKT-AKKU6
Softwareincluded
Display resolution800x600
Touchpadyes
