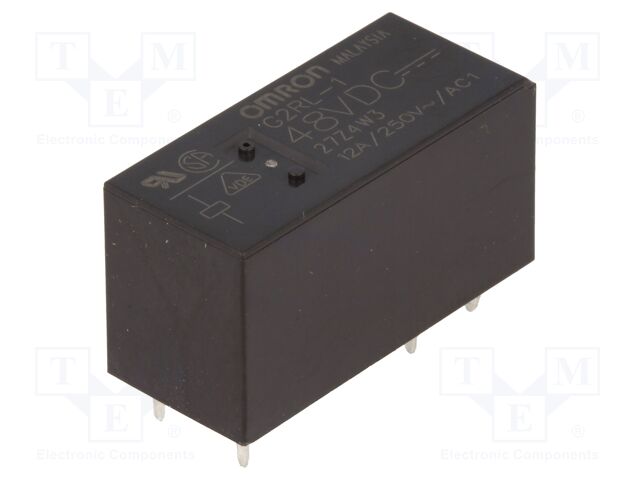

OMRON OCB G2RL-1 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 12A
OMRON OCB G2RL-1 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 12
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2RL-1 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 12A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 6c382cee724cdd83f02032fb5cc34292. |
| jsonUrlData2 | b4436866b024bd804b71 |
| keywords | OMRON OCB, G2RL-1 48VDC, G2RL-1-48DC |
| MPN | G2RL-1 48VDC |
| qtyInStock | 0 |
| SKU | G2RL-1-48DC |
| snippet | OMRON OCB G2RL-1 48VDC | Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 12 |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.35 |
| tierPrice2 | 3.01 |
| tierPrice3 | 2.69 |
| tierPrice4 | 2.43 |
| tierPrice5 | 2.27 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 48V DC |
| Contact current max | 12A |
| AC contacts rating @R | 12A / 250V AC |
| DC contacts rating @R | 12A / 24V DC |
| Switched voltage | max. 300V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 53.58? |
| Operate time | 15ms |
| Body dimensions | 29x12.7x15.7mm |
| Release time | 5ms |
| Operating temperature | -40...85?C |
| Relay series | G2RL |
| Contact resistance | 100m? |
| Terminal pitch | 3.5mm |
| Coil current | 8.96mA |
| Enclosure description | standard seal |
| Leads | for PCB |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2RL-1-48DC | 1 | 1 | 1 @ $3.35, 5 @ $3.01, 20 @ $2.69, 100 @ $2.43, 500 @ $2.27 |
