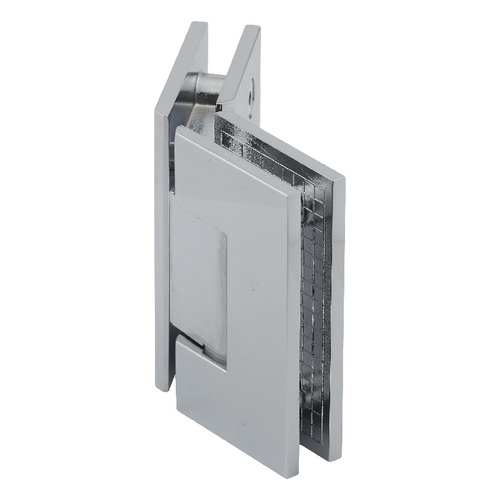

US Horizon H135GTGAC Adjustable Designer Series Glass To Glass Door Hinge 135 Degree Polished Chrome

The Adjustable Designer Series Glass To Glass Door Hinge will allow for adjustment of door closing position after the initial installation of the door. Solid Brass construction ensures the toughness to hold heavy doors and also guarantees resistance to corrosion hence durability for a long time. They are widely used in homes and various other commercial building projects.

U.S. Horizon Mfg., Inc. . H135GTGAC

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerU.S. Horizon Mfg., Inc.
CategoryIdL3Designer Series
CategoryL1Bathroom Hardware
CategoryL2Shower Door Hinges & Hinge Replacement Parts
Extra Product NameUS Horizon H135GTGAC Adjustable Designer Series Glass To Glass Door Hinge 135 Degree Polished Chrome
Weight, Max Door Weight-3 Hinges (Lbs)120
WeightUnitlbs
Weight_AttribMax Door Weight-3 Hinges (Lbs)
atoms, moq, multiple, tierMinQty1, Pack Size1
extendedQty, qtyInStock0
MPNH135GTGAC
qtySourceupdateFromUrlEntry
tierPrice1126.47
Height3-35/64
FinishPolished Chrome
MaterialSolid Forged Brass
Type, Angle Degree135 Degree
Screw TypeMatching Finish Stainless Steel Allen Style Clamp Screws
Mounting StyleGlass to Glass mount
Designed For3/8" and 1/2" (10 and 12 mm) Glass
Self-ClosingFrom 25 Degrees
Other SpecificationsMaximum door weight: - 2-hinge - 80lbs (36kg) - 3-hinge - 120lbs (54kg) Maximum door width: - 2-hinge - 30" (762mm) - 3-hinge - 36" (914mm)
Hardware IncludesAllen Wrench
Installation Steps1.Use 3 mm Hex Wrench (A) to loosen two screws (B) by turning one circle counter-clockwise. Then proceed with the adjustment. 2. Once you have aligned the door, re-tighten two screws.
Glass Fabrication RequiredCutout
Edge ProfileSquare
Adjustable, Self-CenteringYes
5 Degree Pre-SetNo
Glass To Glass Angle (Degrees)135
Max Door Width - 3 Hinges (IN)36
Max Door Weight-2 Hinges (Lbs)80
Glazing Thickness (Inches)1/2, 3/8
Max Door Width - 2 Hinges (IN)30

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareH135GTGAC111 @ $126.47
