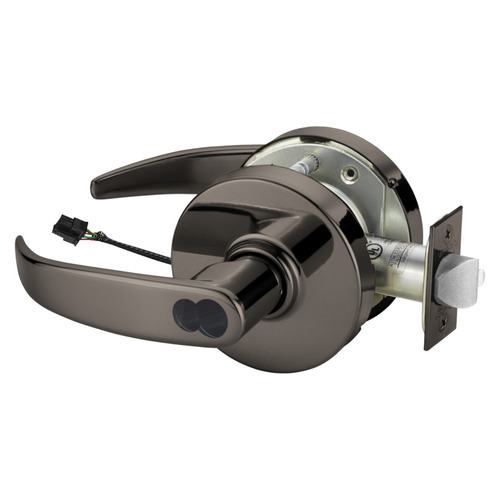

Sargent RX2860-10G70-24V LP 10BL Electric Cylindrical Lock Oxidized Satin Bronze Relieved Clear Coated

Electrified Cylindrical Lock, Fail Safe, 24V, LP Design, LFIC Prep, Less Core, RX Switch, Dark Oxidized Satin Bronze The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements. The 10 Line is the standard for institutional applicatio

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSargent
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSargent RX2860-10G70-24V LP 10BL Electric Cylindrical Lock Oxidized Satin Bronze Relieved Clear Coated
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorOxidized Satin Bronze Relieved Clear Coated
height9.0
height_AttribCase Height
length20.75
length_AttribCase Length
MPN, SKURX2860-10G70-24V LP 10BL
qtyInStock0
tierPrice11095.06
width15.0
width_AttribCase Width
Strike Number808
Package Volume249.8203125
Latch Number10-3192
Amp Draw250mA
Case Width15"
Function70-Electromechanical Fail Safe
Latch TypeDead Latch (Guarded)
HandNon Handed
GradeGrade 1
Fire Rated3 Hours {A}
Special MarksFull size/large format interchangeable core, Fire rated 3 Hours {A}
Strike Width1-1/4"
Latch Backset Dim2-3/4"
Operating Voltage24VDC
Cylinder TypeSargent LFIC Prep Less Core
Lock Face Size2-1/4" x 1-1/8"
Case Length20.75"
Package Height4.25"
ScrewsCombination
Door Thickness1-3/4" to 2"
Case Height9"
Package Width7.125"
Bolt Protection1/2"
Case Volume2801.25
Color Code614/10BL
Strike TypeASA
OriginUSA
BAA QualifiedYes
Switch TypeRX
Rose/Escutcheon DesignL - Rose
Base MaterialBronze
Strike Height4-7/8"
Lever/Knob DesignP - Lever
PowerHard Wired
Package Length8.25"

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareRX2860-10G70-24V LP 10BL111 @ $1095.06
