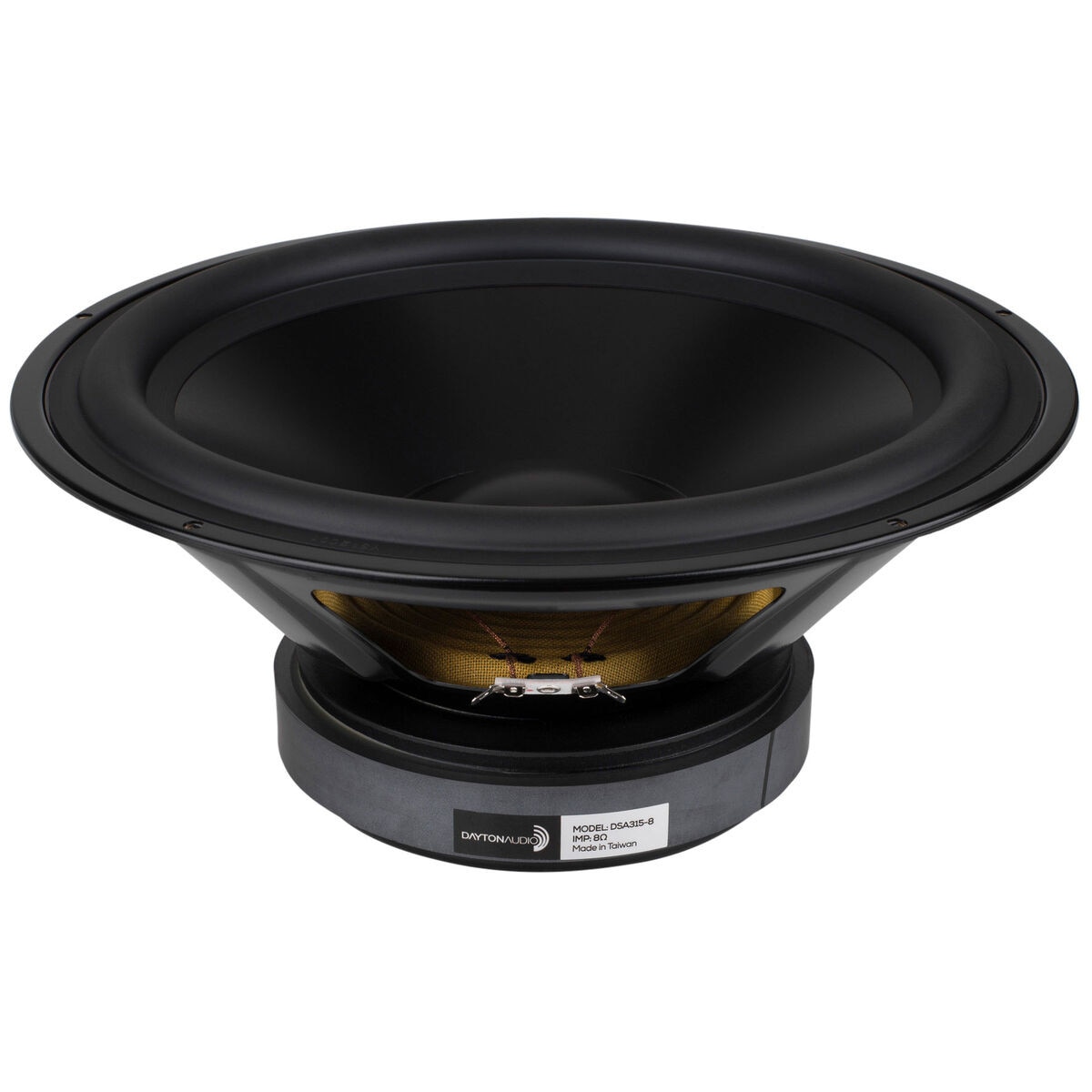

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer

Dayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer. Part Number: 295-534 by Dayton Audio.

Dayton Audio . DSA315-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer
UPC848791002441
Weight13.75
WeightUnitlbs
depth, length5.12
diameter, height, width12.36
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelDSA315-8
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-534
snippetDayton Audio DSA315-8 12" Designer Series Aluminum Cone Woofer. Part Number: 295-534 by Dayton Audio.
tierMinQty24
tierPrice1129.98
tierPrice2116.98
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)120 Watts
Power Handling (MAX)240 Watts
Impedance8?
Frequency Response24 to 2,000Hz
Sensitivity90.3dB 2.83V/1m
Voice Coil Diameter1.95"
Resonant Frequency (Fs)24.23Hz
DC Resistance (Re)6?
Voice Coil Inductance (Le)1.11mH
Mechanical Q (Qms)1.89
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)5.19ft?
Mechanical Compliance of Suspension (Cms)0.38mm/N
BL Product (BL)16.1T?m
Diaphragm Mass Inc Airload (Mms)113.1g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)506.7cm?
Cone Material, Voice Coil FormerAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.36"
Baffle Cutout Diameter10.71"
Depth5.12"
# Mounting Holes5
Sealed Volume1ft?
Sealed F358Hz
Vented Volume2.1ft?
Vented F336Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-5341-211 @ $129.98, 4 @ $116.98
