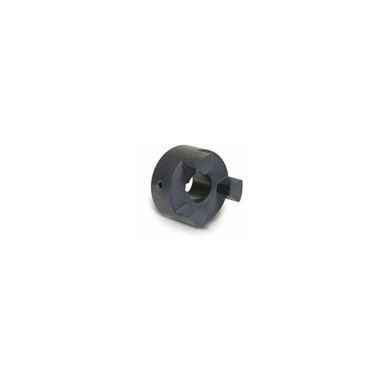

L11078 L110X7/8 L-JAW HUB

L11078 L110X7/8 L-JAW HUB

TB Woods . L11078

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Jaw Couplings
CategoryL3Components
CategoryL4Hub Halves
Extra Product Name, snippetL11078 L110X7/8 L-JAW HUB
moq, multiple2
MPNL11078
qtyInStock0
SKU338028
tierMinQty11
tierPrice144.48
Bore size7/8
Keyway3/16 in x 3/32 in
Product familyL-jaw hub
Size code110
Dimension (in) (S)0.75
Overall length4.23
Dimension (in ) (OD)3.330
Max compatible bore size1.625
Setscrew length (in)5/8
Hub material, Material typeSinter carbon steel
Max speed, Max RPM5000
Setscrew length, Min compatible bore size0.625
Dimension (in) (LTB), Length-through-bore1.69
Bore shapeFinish with keyway
Setscrew size3/8 16 UNC - 2B
Jaw typeStraight
Dimension (in) (HD), O D3.33
Max parallel misalignment0.015
Center0.85
Bore tolerance (in)+0.0005 to +0.0015
Bore tolerance+.0005 to +.0015
Coupling sizeL110
Keyseat3/16 x 3/32

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply338028221 @ $44.48
Grainger3X70811
Applied Industrial10081290711
sustainablesupply.comC16831751-211 @ $30.38
ZoroG304227716411 @ $47.89
simsupply.comZO-G304227714211 @ $61.41
