Veris Industries . PX3DLX02
Page description
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Galco | PX3DLX02 | 1 | 1 | 1 @ $206.51 | |
| uri.com | PX3DLX02 | 1 | -2 | 1 | 1 @ $395.96 |
 midwestapplianceparts.com | PX3DLX02-VE-P | 1 | -2 | 1 | 1 @ $194.58 |
| midwestapplianceparts.com | PX3DLX02 -VE-P | 1 | 1 | ||
| PX3DLX02 | 1 | Ships From Manufacturer | 1 | 1 @ $170.64 | |
| PX3DLX02 | 1 | 7 | 1 | 1 @ $176.62 | |
| PX3DLX02 | 1 | 1 | 1 @ $212.55 | ||
| PX3DLX02-VEIN | 1 | 1 | 1 @ $238.47 | ||
 blackhawksupply.com | PX3DLX02 | 1 | EXTENDED LEAD TIME; 3-4 WEEKS | 1 | 1 @ $148.49 |
 zotsupply.com | PX3DLX02 | 1 | Ships in 1-2 Weeks | 1 | 1 @ $147.84 |
 Voomi Supply | PX3DLX02 | 1 | -2 | 1 | 1 @ $187.10 |
| globaltestsupply.com | PX3DLX02 | 1 | 2 to 3 Weeks | 1 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

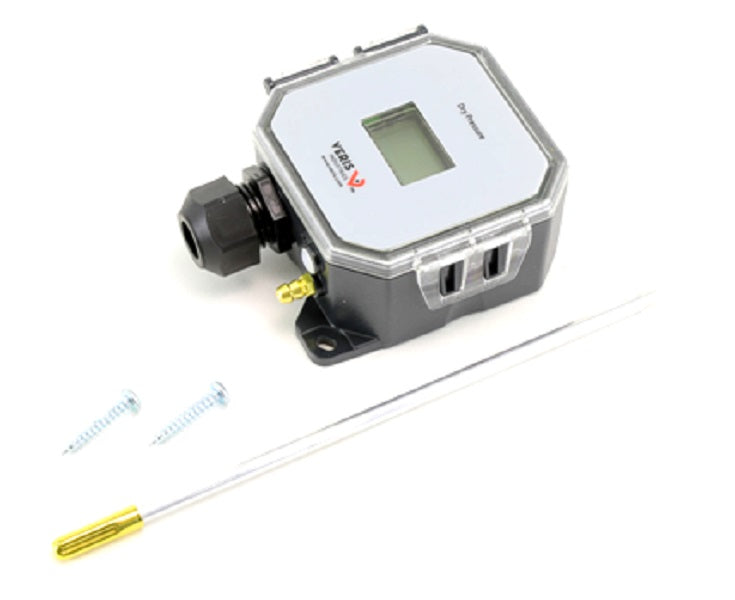

Veris,Pressure,Dry,Duct,LCD,0-10 in WC, PX3DLX02
Brand: Veris
Media Compatibility Dry air or inert gas Input Power 12-30VDC or 24VAC nominal Output Field-selectable: 2-wire loop-powered 4-20mA (DC only clipped and capped) or 3-wire 0-5V/0-10V Pressure Ranges: Unidirectional: 0.1/0.25/0.5/1.0” W.C. F.S. (25 pa/50 pa/100 pa/250 pa F.S.) switch selectable; Bidirectional: ±0.1/±0.25/±0.5/±1.0” W.C. F.S. (±25 pa/±50 pa/±100 pa/±250 pa F.S.) switch selectable Response Time Standard: T95 in 20 sec Fast: T95 in 2 sec switch selectable Mode Unidirectional or bidirectional switch selectable Display (option) Signed 3-1/2 digit LCD indicates pressure overrange indicator Proof Pressure 3 psid (20.6kPa) Burst Pressure 5 psid (34.5kPa) Accuracy ±1% F.S. of selected range (combined linearity and hysteresis) Temperature Effect 1" 0.05%/°C; 10" Zero Drift (1-year) 1" 2.0% max. Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal block) Operating Environment 0°- 60°C (32° to 140°F); 0 to 90% RH non-condensing Fittings Brass barb; 0.24” (6.1mm) o.d. Physical UL 94 V-O Fire Retardant ABS EMC Conformance: EN 61000-6-3:2001 Class B EN 61000-6-1:2001 EN 61000-3-2:2000 EN 61000-3-3:2001 EMC Test Methods: CISPR 22:1997 (Amended A1:2000 Class B A2:2002) IEC 61000-4-2:2002 IEC 61000-4-3:2006 IEC 61000-4-4:2004 IEC 61000-4-5:2001 IEC 61000-4-6:2004 IEC 61000-4-8:2001 IEC 61000-4-11:2004.EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor with proper SURGE PROTECTION (EN 61000-6-1:2001 specification requirements).
Details
- The PX3 transducer can measure either air pressure or velocity with the flip of a switch
- The PX3 is available in three installation configurations: duct, panel or universal
- Duct and panel models have two pressure and velocity range options:0-1" WC / 0-3,000 ft/min or 0-10" WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity
- All variants are available with and without display
Listing
| Product group | Apparel |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Model | PX3DLX02 |
| Part number | PX3DLX02 |
| Items per pack | 1 |
| Label | Veris |
| Manufacturer | Veris |
