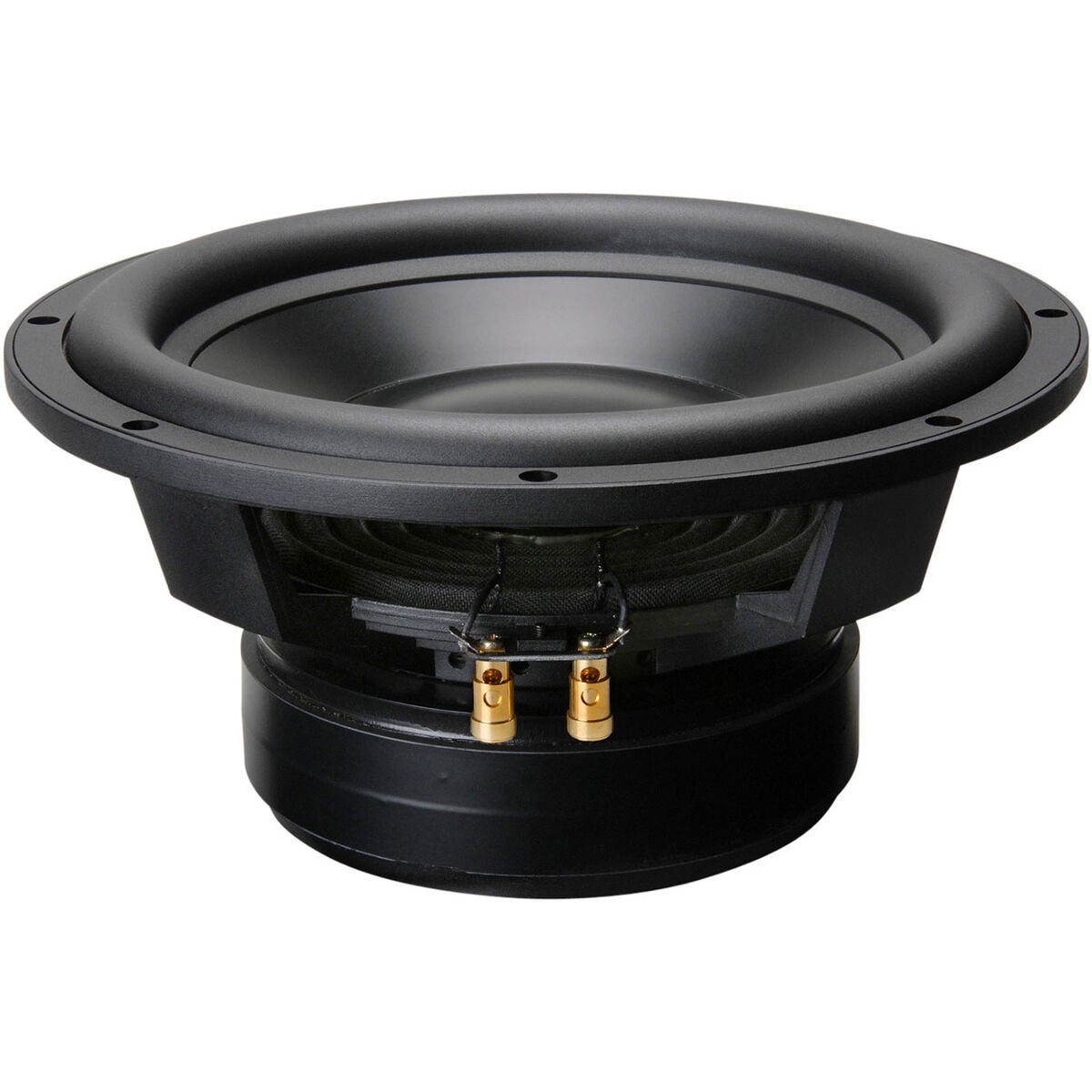

Dayton Audio RSS315HO-44 12" Reference Series HO DVC Subwoofer

Dayton Audio RSS315HO-44 12" Reference HO DVC Subwoofer. Part Number: 295-467 by Dayton Audio.

Dayton Audio . RSS315HO-44

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandDayton Audio
DimensionUnitinch
Extra Product NameDayton Audio RSS315HO-44 12" Reference Series HO DVC Subwoofer
UPC844632087714
Weight25.4
WeightUnitlbs
depth, length5.75
diameter, height, width12.36
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelRSS315HO-44
qtyInStock-2
qtySourceFieldMap
SKU, Part Number295-467
snippetDayton Audio RSS315HO-44 12" Reference HO DVC Subwoofer. Part Number: 295-467 by Dayton Audio.
tierMinQty24
tierPrice1239.98
tierPrice2220.55
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8?
Frequency Response20 to 500Hz
Sensitivity84.6dB 2.83V/1m
Voice Coil Diameter2.58"
Resonant Frequency (Fs)21.5Hz
DC Resistance (Re)6.5?
Voice Coil Inductance (Le)3.17mH
Mechanical Q (Qms)3.7
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)2.165ft?
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)26.5T?m
Diaphragm Mass Inc Airload (Mms)327.7g
Maximum Linear Excursion (Xmax)14mm
Surface Area of Cone (Sd)507.1cm?
Cone Material, Voice Coil FormerAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.36"
Baffle Cutout Diameter11.1"
Depth5.75"
# Mounting Holes8
Sealed Volume0.6ft?
Sealed F346Hz
Vented Volume1.4ft?
Vented F326Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com295-4671-211 @ $239.98, 4 @ $220.55
