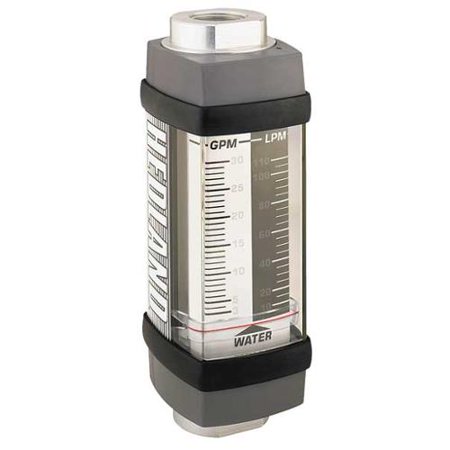

Flowmeter, Variable Area, Max. Pressure 5000 PSI, Connection Size (In.) 1 FNPT, Max. Temp. 240 F, Housing Material Stainless Steel, Chamber Material Brass, Seal Material Viton, Accuracy +/-2% Full Scale %, Flow Material Water and Other Liquids, Flow Range @ GPM/LPM 2 to 20 / 10 to 76, Pressure Drop - 100% Flow 9 PSI, Pressure Drop - 50% Flow 4 PSI, Specific Gravity 1 Features Connection Size (In.): 1 FNPT Flow Range: 2 to 20 gpm Height (In.): 2-7/8 Length: 7-3/16" Max. Temp. (F): 240 Type: Variable Area Width (In.): 2-1/2" Housing Material: Stainless steel Max. Pressure (PSI): 5000 Seal Material: Viton Max. Viscosity: 500 SSU Fitting: Stainless Steel Accuracy (%): +/-2% Full Scale Chamber Material: Brass Specific Gravity: 1.000 For Pipe Size: 1" Flow Range @ GPM/LPM: 2 to 20 / 10 to 76

Flowmeter, Variable Area, Max. Pressure 5000 PSI, Connection Size (In.) 1 FNPT, Max. Temp. 240 F, Housing Material Stainless Steel, Chamber Material Brass, Seal Material Viton, Accuracy +/-2% Full Scale %, Flow Material Water and Other Liquids, Flow Range @ GPM/LPM 2 to 20 / 10 to 76, Pressure Drop - 100% Flow 9 PSI, Pressure Drop - 50% Flow 4 PSI, Specific Gravity 1 Features Connection Size (In.): 1 FNPT Flow Range: 2 to 20 gpm Height (In.): 2-7/8 Length: 7-3/16" Max. Temp. (F): 240 Type: Variable Area
