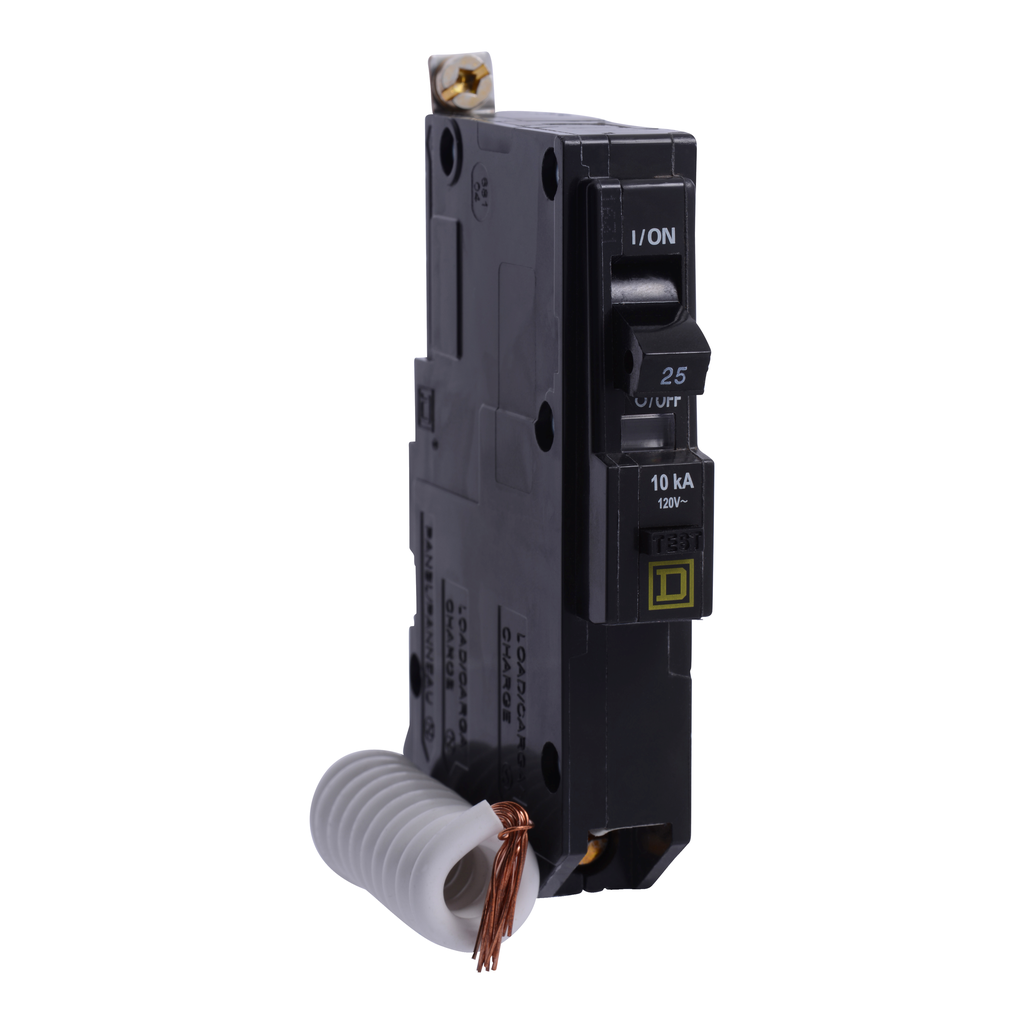

Mini circuit breaker, QO, 25A, 1 pole, 120VAC, 22kA, 30mA grd fault B, bolt on mount | Mayer Electric

SQUARE D . SQDQOB125VHEPD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 25A, 1 pole, 120VAC, 22kA, 30mA grd fault B, bolt on mount | Mayer Electric
UPC, MPN, SKUSQDQOB125VHEPD
Weight0.254
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height105.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-25A-1-pole-120VAC-22kA-30mA-grd-fault-B-bolt-on-mount-SQDQOB125VHEPD
jsonUrlData2cd14b1de-3bf5-4418-b51b-ae320116d43e
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Spaces Required1
qtyInStock0
tierPrice1694.92
width19.0
width_AttribWidth
Circuit Breaker ApplicationHACR rated
Circuit Breaker Typeground fault protecting class B 30 mA
Mounting Modebolt-on
Range Of ProductQO
Poles Description1P
Electrical Connectionpressure plate
Line Rated Current25 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120 V AC
Warranty18 months
Height105 mm
Breaking Capacity22 kA 120 V AC 50/60 Hz
Tightening Torque4.6-4.6 N.m 2.5-10 mm? (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm? (AWG 12...AWG 4)
Awg GaugeAWG 14...AWG 8 copper or aluminium
Width19 mm
Depth74 mm
Net Weight0.254 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB125VHEPD111 @ $694.92
