Where can I buy T1M-02-GF-S-RA-TR?

T1M-02-GF-S-RA-TR is available from Digi-Key, Newark, Radwell, Newark, RS Online. See pricing comparison above.

What is the price of T1M-02-GF-S-RA-TR?

Pricing ranges from $1.76 to $2.70 depending on quantity and distributor.

Yes, T1M-02-GF-S-RA-TR is currently in stock at multiple distributors with immediate availability.

Name: T1M-02-GF-S-RA-TR Samtec Inc. | Connectors, Interconnects | DigiKey
Brand: Samtec Inc.
Availability: OutOfStock

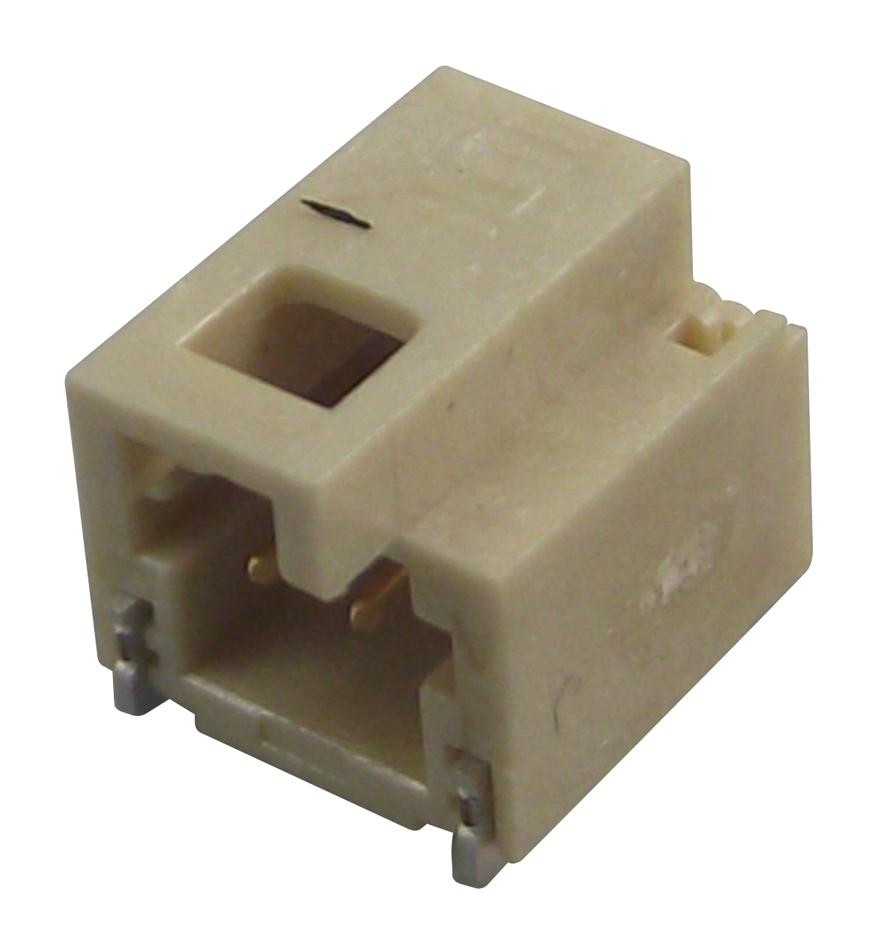

Connector Header Surface Mount, Right Angle 2 position 0.039\

Brand name, Manufacturer name, Manufacturer, Mfr	Samtec Inc.
DimensionUnit	inch
Extra Product Name	T1M-02-GF-S-RA-TR Samtec Inc. \| Connectors, Interconnects \| DigiKey
atoms, moq, multiple, Number of Rows	1
extraShipping, qtyInStock	0
height	0.181
height_Attrib	Insulation Height
MPN	T1M-02-GF-S-RA-TR
SKU	6561686
Category	Connectors, Interconnects
Series	T1M
Package	Tape & Reel (TR)
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	2
Row Spacing - Mating, Contact Length - Mating, Contact Length - Post, Overall Contact Length, Features, Ingress Protection, Mated Stacking Heights, Contact Finish Thickness - Post, Applications	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.181" (4.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00?in (0.076?m)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55?C ~ 85?C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.3A per Contact
Voltage Rating	250VAC, 353VDC
Base Product Number	T1M-02

Seller	SKU	MOQ	In stock	Multiple	Prices
Digi-Key	6561686	1		1
Newark	38Y7995	1		1	1 @ $2.07, 10 @ $1.98, 100 @ $1.66, 250 @ $1.50, 500 @ $1.41
Radwell	T1M-02-GF-S-RA-TR	125		125	1 @ $2.25
Newark	45W5174	1	194	1	1 @ $1.88, 500 @ $1.55, 1000 @ $1.33, 2500 @ $1.24, 5000 @ $1.18, 10000 @ $1.15
RS Online	1548346	1		1
RS Delivers	155-7904	10		10	10 @ $2.37, 50 @ $2.07, 100 @ $1.97, 500 @ $1.68, 1000 @ $1.51
Digi-Key	8828020	1		1
RS Delivers	154-8346	1		1	1 @ $1.76
RS Online	1557904	1		1
Digi-Key	8828226	1	3060	1	1 @ $2.70, 10 @ $2.46, 25 @ $2.33, 50 @ $2.27, 100 @ $2.16, 250 @ $1.89, 500 @ $1.84
