CZT955 TR PBFREE Central Semiconductor Corp | Discrete Semiconductor Products | DigiKey

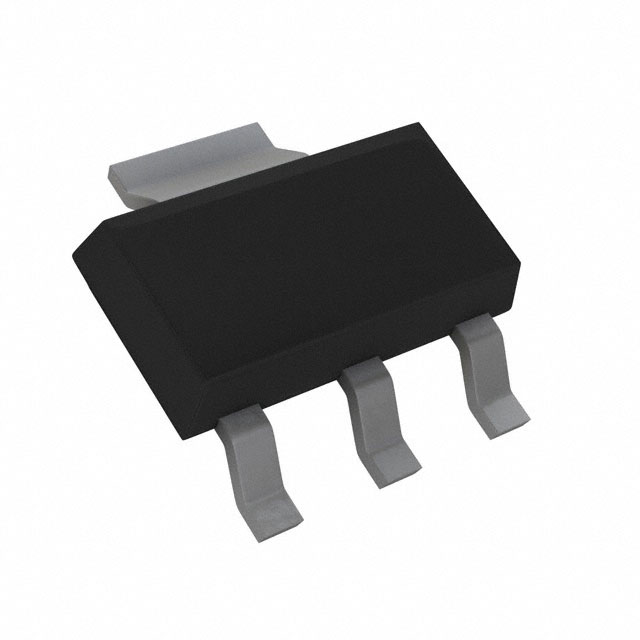

Bipolar (BJT) Transistor PNP 140 V 4 A 200MHz 3 W Surface Mount SOT-223
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Central Semiconductor Corp |
|---|---|
| Extra Product Name | CZT955 TR PBFREE Central Semiconductor Corp | Discrete Semiconductor Products | DigiKey |
| atoms, tierMinQty1 | 1 |
| moq, multiple | 1,000 |
| MPN | CZT955 TR PBFREE |
| qtyInStock | 18855 |
| SKU | 1514-CZT955TRPBFREETR-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 0.55000 |
| tierPrice2 | 0.47300 |
| tierPrice3 | 0.44120 |
| tierPrice4 | 0.32760 |
| tierPrice5 | 0.25578 |
| Category | Discrete Semiconductor Products |
| Series | - |
| Package | Tape & Reel (TR) |
| Part Status | Active |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 360mV @ 300mA, 3A |
| Current - Collector Cutoff (Max) | 20nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1A, 5V |
| Frequency - Transition | 200MHz |
| Operating Temperature | -65?C ~ 150?C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Power - Max | 3 W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | 1514-CZT955TRPBFREETR-ND | 1000 | 18855 | 1000 | 1 @ $0.55, 10 @ $0.47, 25 @ $0.44, 100 @ $0.33, 500 @ $0.26 |
 iodParts | CZT955 TR PBFREE | 3000 | 8000 | 3000 | 3000 @ $0.21, 6000 @ $0.21 |
| Digi-Key | 4807165 | 500 | 4728 | 500 | 1 @ $0.58, 10 @ $0.50, 100 @ $0.37, 500 @ $0.29 |
| Digi-Key | 4807370 | 1 | 2396 | 1 | 1 @ $0.58, 10 @ $0.50, 100 @ $0.37, 500 @ $0.29 |
| Digi-Key | 4807596 | 1 | 2706 | 1 | 1 @ $0.58, 10 @ $0.50, 100 @ $0.37, 500 @ $0.29 |
