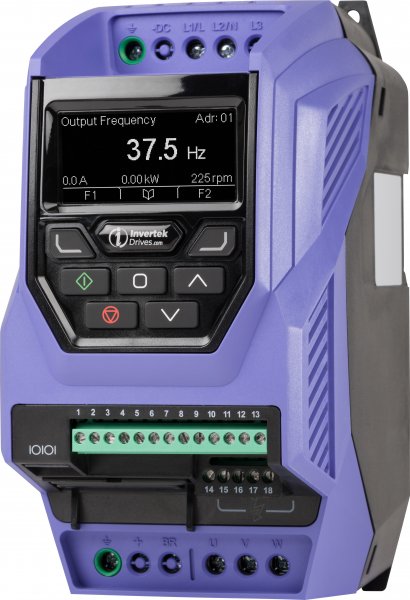

Invertek ODP-2-24020-3HF42-MN 1.5kW 2Hp 4.1A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD

The ODP-2-24020-3HF42-MN is produced by Invertek and is described as a Invertek ODP-2-24020-3HF42-MN 1.5kW 2Hp 4.1A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD

Invertek . ODP-2-24020-3HF42-MN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODP-2-24020-3HF42-MN 1.5kW 2Hp 4.1A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD
Voltage, Input voltage380/480V
Weight1.9
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length7.3
height8.7
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODP-2-24020-3HF42-MN
qtyInStock0
SKU6092855
tierPrice1641.28
width5.708661417322834
width_AttribPackaged dimensions width
Frame, Drive dimensions size2
Height8.7 in
Depth7.3 in
Rated power1.5 kW/2 HP
Phase, Input phases3
Width (in)4.3
Supply fuse or MCB (type B)10 A
Packaged dimensions depth230 mm (9.06 in)
Supply current continuous5.1 A
Drive dimensions weight1.8 kg (3.97 lbs)
Max motor cable size, Max supply cable size8 mm? (0.01 in?)
Brake transistorInternal
Supply voltage380-480 V
Output current4.1 A
Drive dimensions fixings4 x M4
Drive dimensions depth185 mm (7.28 in)
Packaged dimensions weight1.9 kg (4.19 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height221 mm (8.7 in)
EMC filterInternal EMC
DisplayTFT display
Packaged dimensions height265 mm (10.43 in)
Motor output rating1.5 kW (2 HP)
Drive dimensions width110 mm (4.33 in)
PCB coatingStandard
EnclosureIP20
Packaged dimensions width145 mm (5.71 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092855111 @ $641.28
driveswarehouse.comODP-2-24020-3HF42-MN1-211 @ $555.78
