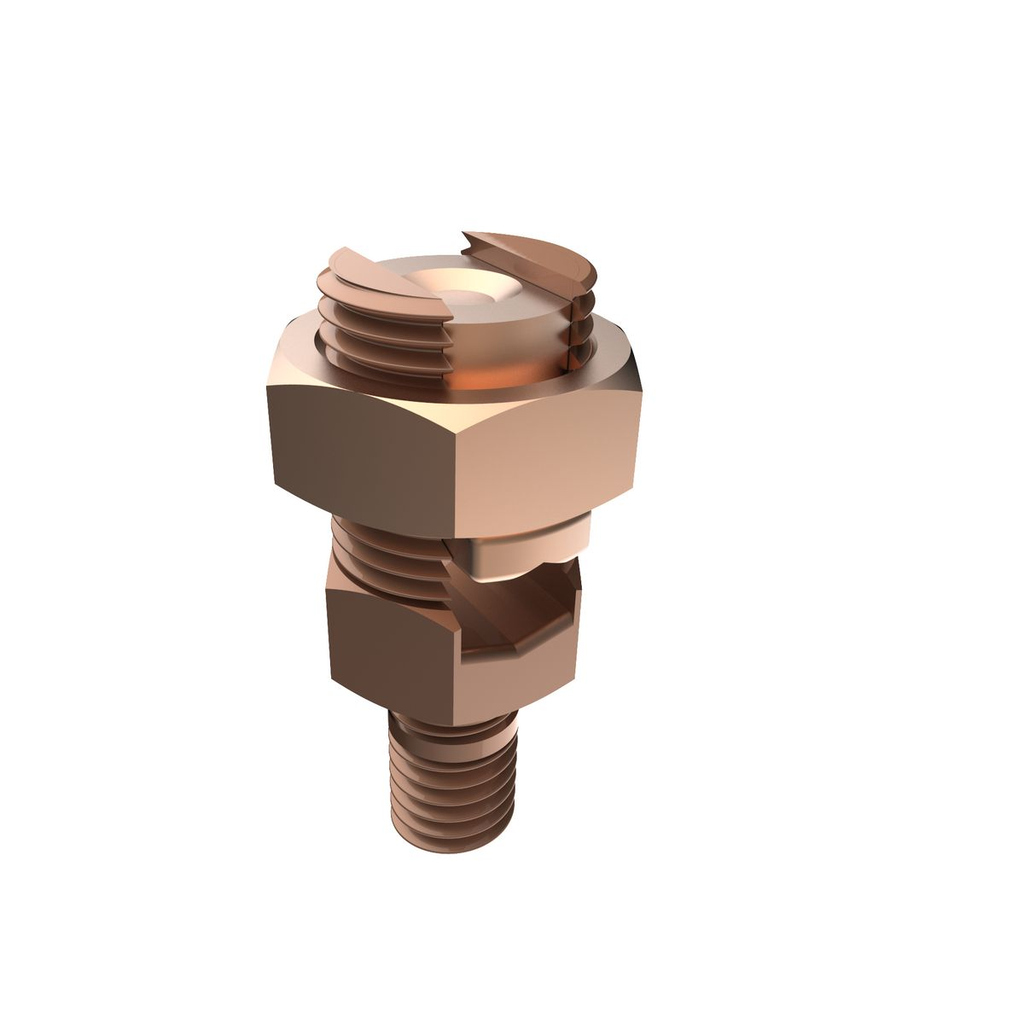

Mechanical SERVIT POST? Connector; Cable to Flat | Mayer Electric

Shop BURNDY products at Mayer. Mechanical Connectors KC25

Mayer Electric Supply . KC25

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameMechanical SERVIT POST? Connector; Cable to Flat | Mayer Electric
UPC781810255650
Weight5940.000
WeightUnitlbs
Weight_AttribPallet Weight
countryOfOrigin, Country of OriginUS
height54.0
height_AttribPallet Height
jsonUrlData/Product/BURNDY-Mechanical-Connectors-KC25-781810255650
jsonUrlData208cc07cc-14d8-4233-ae55-abb200c8bb5a
keywordsBURNDY, Mayer BURNDY, 781810255650, KC25
length48.0
length_AttribPallet Length
moq, multiple, tierMinQty1, Physical Attribute - Number of Conductors Accommodated Total, Each - Number of Sub Packs1
MPNKC25
qtyInStock0
SKUBURKC25
snippetShop BURNDY products at Mayer. Mechanical Connectors KC25
tierPrice159.85
width0.93
width_AttribWidth
SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Cross Flats: 15/16, 3/4 IN, Dimension B: 9/16 IN, Height: 1-7/8 IN, Stud Size, Special Features : Features: SERVIT POST Used To Ground One Or Two Cables To Steel Structures, Fence Posts, Transformers, Also Used To Tap One Or Two Cables From Bus Bar, One-Wrench Installation, Conductor Type: Run: Commercial Stranded Copper, Commercial Solid Copper, Cross Flats: 15/16, 3/4 IN, Dimension B: 9/16 IN, Height: 1-7/8 IN, Stud Size1/2-13
Buy American Compliant, ARRA Compliant, UL Listed, UL Listed Direct Burial, EU RoHS IndicatorYes
Conductor - Copper Solid Size2 AWG;1 AWG;1/0 AWG;2/0 AWG
Conductor - Copper Solid Size Range2 AWG-2/0 AWG
Conductor - Copper Str Size2 AWG;1 AWG;1/0
Conductor - Copper Str Size Range2 AWG-1/0 AWG
Dimension - B Length fraction9/16 in
Dimension - Body Width inch, Dimension - D inch0.75 in
Dimension - Bolt Size fraction1/2
Dimension - Height fraction1-1/8
Dimension - Length Overall inch1.94 in
Dimension - Nut Width inch, Width, Each - Width0.93 in
Dimension - P inch0.39 in
Dimension - Threads per inch13
Industry Standard(s), Standards - Industry Standards Met, StandardUL467
PlatedN
Plating TypeUnplated
Product TypeMechanical
Standards - RoHS Compliance StatusEX
Stud Installation Torque inch pounds480 LBS/in
Trade NameSERVIT POST?
ApplicationFor Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
Sub BrandSERVIT POST
TypeKC and K2C Series
Certification AgencyProposition 65
Class CodeB41
Description - Invoice2-1/0 STR 9/16 POST 1 CO
Freight Class Code16027000
Harmonization Code8535908060
Image Actual Or RepresentativeA
Lead Time10 wk
MSDS Flag, CSA Approved, cULus, ETL, UL RecognizedNo
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Sub Class CodeB41BDGF
MaterialBronze, Leaded, Commercial
Base Unit of MeasureEA
BOX SIZE4.500x4.200x4.400 (in)
Carton - Gross Weight per Pack5.000 lb.
Carton - Number of Sub Packs, Carton - Total Units, Package - Number of Sub Packs, Standard Package Quantity25
Carton - Pack DescriptionCarton
Carton - SCC-14 Next Lower Level Sub Pack, Package - SCC-14 Next Lower Level Sub Pack00781810255650
Case - SCC-14 Next Lower Level Sub Pack, Package - GTIN - Package30781810255651
Each - Pack Description, Lowest Level UOMEach
Package - Gross Weight per Pack, Package Weight5 lb.
Package - Pack DescriptionPackage
Package - Total Units, Package Quantity25 EA
Package Height, Package Length, Package Width4 in
Pallet - GTIN - Package70781810255659
Pallet Height54.000 in
Pallet Length, Pallet Width48.000 in
Pallet Weight5940.000 lb.

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comBURKC25111 @ $59.85
