RideTech . 11360201

Turn your 1973-1987 Fits Chevrolet C10 pickup trucks into a true muscle truck with RideTech’s new coil over suspension kit. The complete system includes everything needed to dramatically improve the handling, ride quality and stance of your “square fender” pickup. FEATURES Drop Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel. Upper StrongArms feature corrected ball joint angles . The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction. Also includes Cross shafts and hardware. HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound knob, located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Brackets are included witht the rear coilovers for easy attachment to the frame and to the 10/12 bolt rearend or Currie 9?. Brackets for a Moser rearend are also available. Interested in AutoCross or Road Course Racing? Consider the TQ Series CoilOvers. Front MucleBar Sway Bar helps reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms

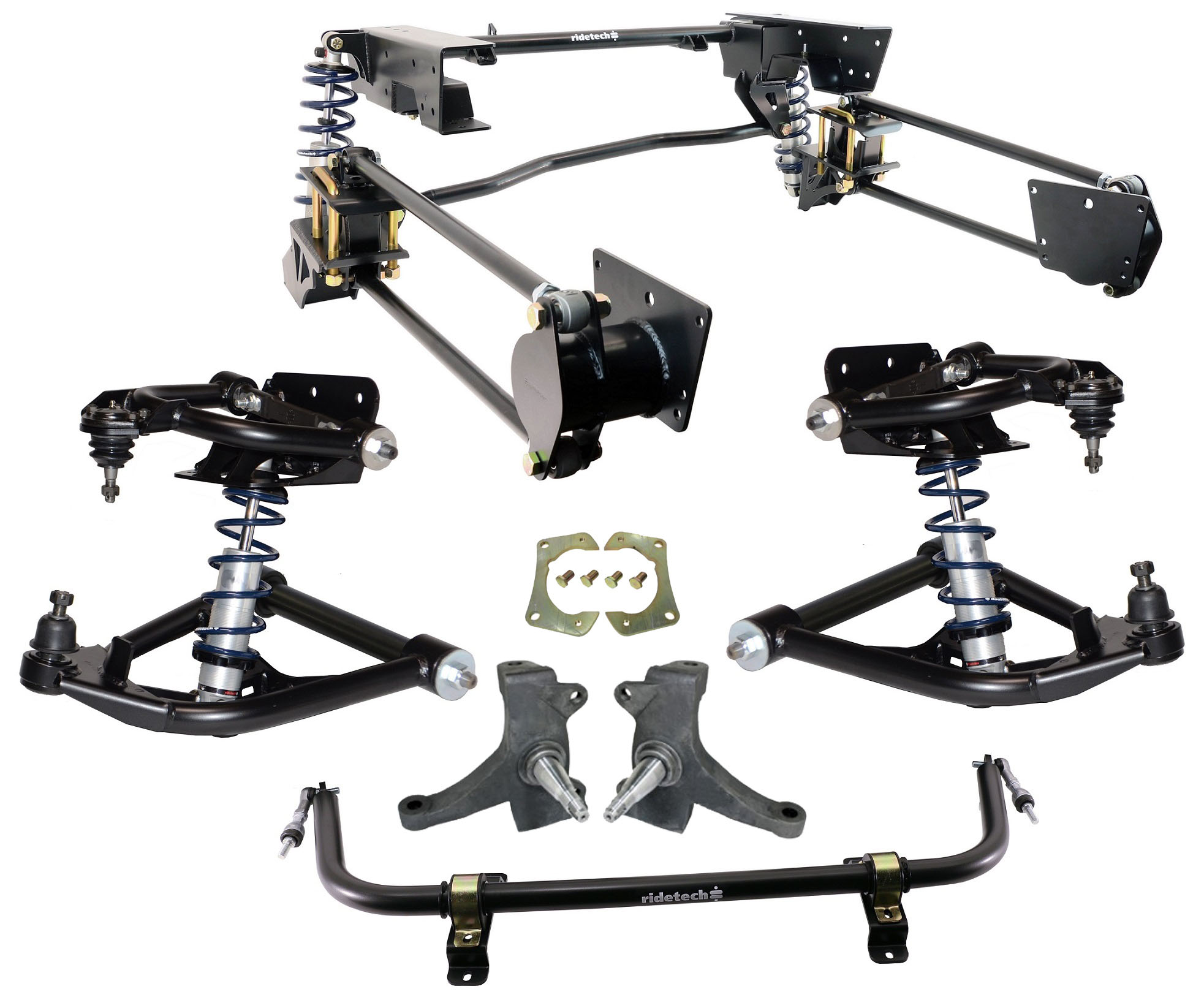

Complete Coil-Over Suspension System 1973-1987 Chevy / GMC C10HQ-Series Single-Adjustable ShocksStrongArm Control Arms w/Tall Drop SpindlesFront MuscleBar w/ PosiLinksBolt-On 4-Link 1973-1987 Chevy / GMC C10 Package Includes:HQ Series Single-Adjustable Coil-Over ShocksHigh Tensile Steel 2-1/2 inch Diameter Coil SpringsUpper & Lower StrongArm Control Arms w/Tall 2 in. Drop SpindlesFront MuscleBar Sway Bar with PosiLinks End LinksBolt-On 4-Link Suspension SystemIndividual System Overview:Front Upper StrongArms feature corrected balljoint angles for taller spindles allowing additional caster, steering feel, and high-speed stability. Offset slugs are available for an additional caster. The use of injection molded Delrin bushings reduces deflection and stiction.Front Lower StrongArms feature a double sheer lower mount for added strength, while the lower shock mount has been lowered for an increase in suspension travel. Lower ball joints are moved forward to increase caster while also keeping the wheel centered in the wheel well. The use of injection molded Delrin bushings reduces deflection and stiction.HQ Series Coil-Overs feature a monotube design with an impact forged aluminum body providing excellent ride quality and handling. Ride and handling can be fine-tuned with the rebound adjustment knob located at the top of the shock.Front MuscleBar is of a splined design to help reduce body roll and creates additional clearance for wider tires. The use of Ridetech exclusive PosiLink end links provides immediate engagement from the StrongArms to the chassis.Bolt-On 4-Link will improve traction, handling, and ride quality tremendously. Installations will not require any welding or major modifications. The use of R-joint rod ends combine the best qualities of low friction...
