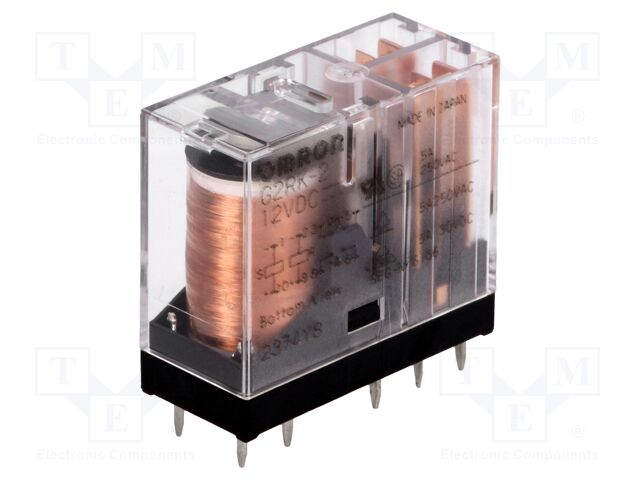

OMRON OCB G2RK-2 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 3A; PCB
OMRON OCB G2RK-2 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 3A; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2RK-2 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 3A; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 77901450068ac105517225b8dbe4b0d9. |
| jsonUrlData2 | 952d302d3a0c97598fd1 |
| keywords | OMRON OCB, G2RK-2 12VDC, G2RK-2-12DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2RK-2 12VDC |
| qtyInStock | 21 |
| SKU | G2RK-2-12DC |
| snippet | OMRON OCB G2RK-2 12VDC | Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 3A; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 7.14 |
| tierPrice2 | 6.49 |
| tierPrice3 | 5.03 |
| tierPrice4 | 4.71 |
| tierPrice5 | 4.38 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 12V DC |
| Contact current max | 3A |
| AC contacts rating @R | 3A / 250V AC |
| DC contacts rating @R | 3A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | bistable, |
| Mounting | PCB |
| Coil resistance | 170? |
| Body dimensions | 29x13x25.5mm |
| Operating temperature | -40...70?C |
| Relay series | G2RK |
| Contact resistance | 50m? |
| Terminal pitch | 5mm |
| Coil current | 70.6mA |
| Design | two coils |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2RK-2-12DC | 1 | 21 | 1 | 1 @ $7.14, 5 @ $6.49, 25 @ $5.03, 100 @ $4.71, 500 @ $4.38 |
