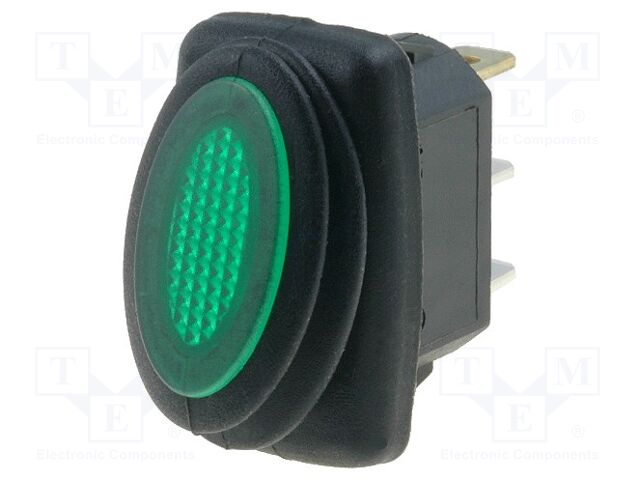

SCI R13-278B8-02-G | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; green; IP65; neon lamp
SCI R13-278B8-02-G | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; green; IP65; neon lam
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCI |
|---|---|
| CategoryL1 | Switches and Indicators |
| CategoryL2 | Rocker Switches |
| DimensionUnit | mm |
| Extra Product Name | SCI R13-278B8-02-G | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; green; IP65; neon lamp |
| atoms, moq, multiple | 1 |
| diameter, length, width | 23.3 |
| jsonUrlData | 2c367d2737a8e01ff7fa2252348f5510. |
| jsonUrlData2 | 7ab3bd92fb3dd4827cbc |
| keywords | SCI, R13-278B8-02-G, R13278B802G, Switches and Indicators, Rocker Switches |
| length_Attrib, width_Attrib | Mounting hole diameter |
| MPN | R13-278B8-02-G |
| qtyInStock | 0 |
| SKU | R13278B802G |
| snippet | SCI R13-278B8-02-G | ROCKER; SPST; Pos: 2; ON-OFF; 10A/250VAC; green; IP65; neon lam |
| Type of switch | ROCKER |
| Contacts configuration | SPST |
| Number of positions, Stable positions number | 2 |
| Switching method | ON-OFF |
| AC contacts rating @R | 10A / 250V AC |
| Key button colour, Backlight colour | green |
| IP rating | IP65 |
| Illumination | neon lamp |
| Max contact resistance: | 50m? |
| Body colour | black |
| Flammability rating | UL94V-2 |
| Operating temperature | -20...85?C |
| Leads | connectors 6,3x0,8mm |
| Panel thickness | max. 3mm |
| Mounting hole diameter | 23.3x11.6mm |
| Button marking | blank |
| Shape | rectangular |
| Body dimensions | 25x15x17.2mm |
| Manufacturer series | R13-278-AC |
