Sewage Ejector Pump, HP 1/2, Rated Voltage 115V AC, Phase - Pumps 1, Amps 10.30, Motor Type Hermetically-Sealed, Oil-filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point 15 1/4 in, Off Point 5 1/4 in, Flow Rate @ 10 Ft. of Head 96 gpm, Flow Rate @ 15 Ft. of Head 64 gpm, Flow Rate @ 20 Ft. of Head 34 gpm, Max. Diameter Solids 2 in

'Submersible Sewage Pump, Manual, 1/2 HP, Switch Type None, Base Material Cast Iron, Housing Material Cast Iron, Impeller Material Cast Iron, Voltage 115, Phase 1, Amps 10.3, Height 21-1/16 In., Diameter 13-9/16 In., Cord Length 20 ft., Max. Dia. Solids 2 In., GPM of Water @ 5 Ft. of Head 130, GPM of Water @ 10 Ft. of Head 95, Max. Head 26 ft., Thermal Protection Yes, Motor Type Hermetically-Sealed, Oil-filled, Bearing Type Upper Sleeve and Lower Ball, Shaft Seal Carbon/Ceramic'

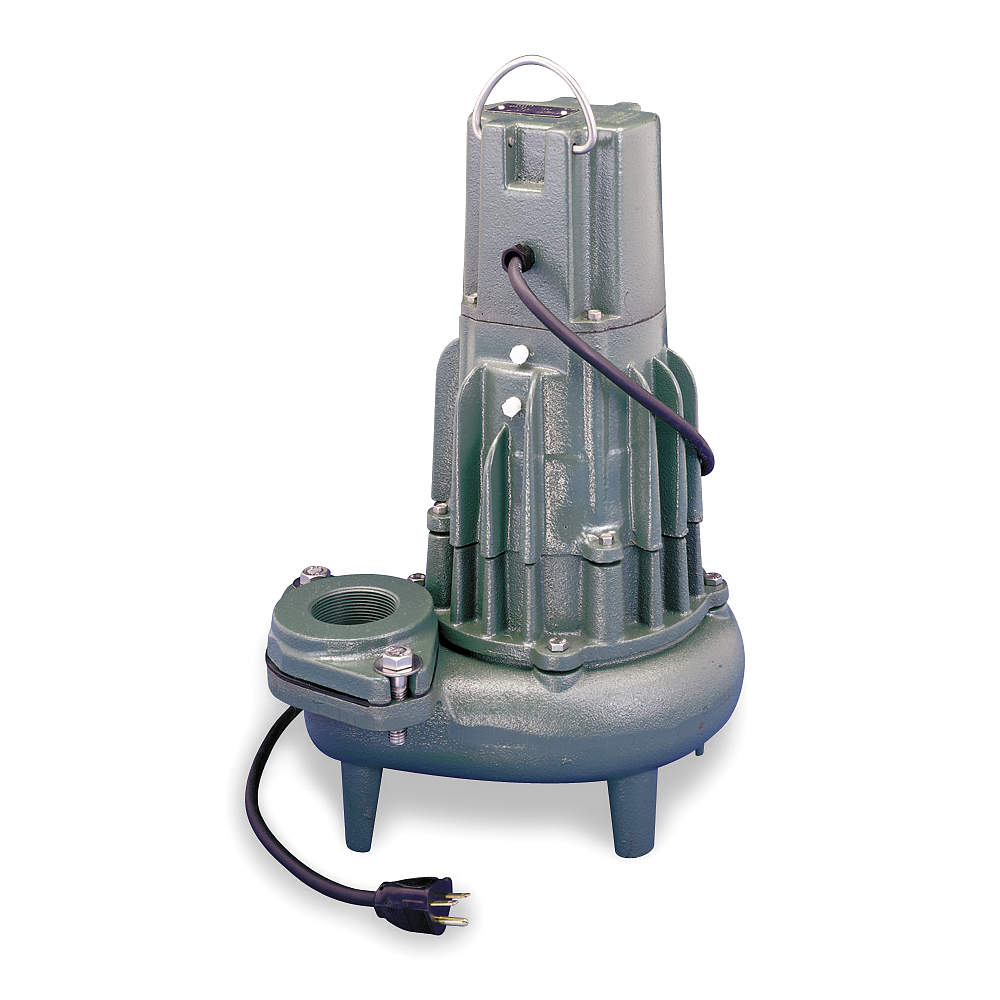

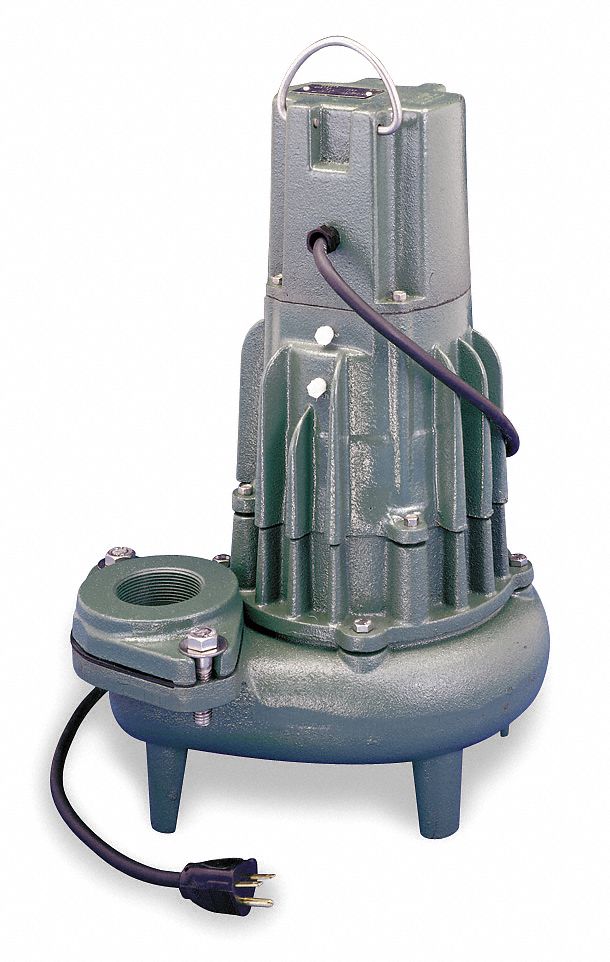

Zoeller Single Seal Submersible Sewage/Dewatering Pump Features: All models pass 2" spherical solids Automatic units available with float operated, submersible (NEMA 6) mechanical switch (1 and 3 phase units) Corrosion resistant powder coated epoxy finish On point: 15-1/4" Off point: 5-1/4" Reserve powered design. For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump. Float Switch must be purchased separately. Specifications: Brand: Zoeller Mfg. Number: 382-0002 Model: N282 Series: Waste-Mate 280 Product Type: Sewage Pump Application: Sewage/Dewatering Operation: Manual Horsepower: 1/2 Hp Voltage: 115 Volts Phase: 1 Frequency: 60 Hz Speed: 1750 RPM Seal Type: Single Pump Housing Material: Cast iron Impeller Material: Cast iron Impeller Type: Non-clogging vortex Maximum Solids Handling: 2" Discharge Connection: 3" flanged vertical Maximum Flow: 125 GPM Maximum Head: 25 ft Cord Length: 15 ft Maximum Fluid Temperature: 130°F
