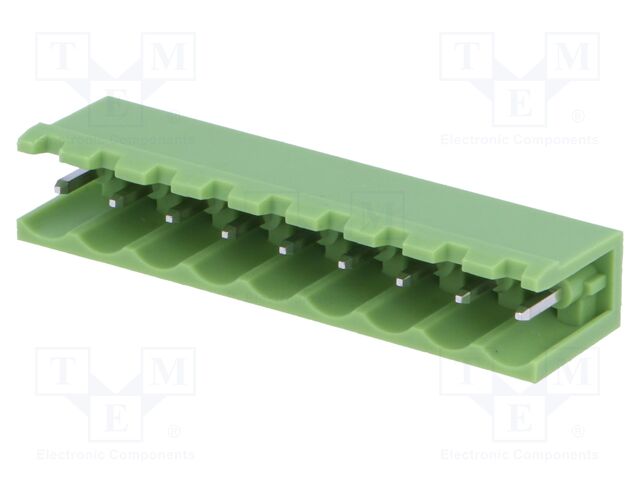

XINYA XY2500V-C(5.08)-9PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 9; straight
XINYA XY2500V-C(5.08)-9PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 9; straigh
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500V-C(5.08)-9PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 9; straight |
| atoms | 1 |
| height | 12.0 |
| height_Attrib | Height |
| jsonUrlData | 82fbf7cacca57dfeaeb577774b56dfac. |
| jsonUrlData2 | 38966787cd233a382fc2 |
| keywords | XINYA, XY2500V-C(5.08)-9PIN, TBG-5-PB-9P-GN |
| moq, multiple, tierMinQty1 | 5 |
| MPN | XY2500V-C(5.08)-9PIN |
| qtyInStock | 2913 |
| SKU | TBG-5-PB-9P-GN |
| snippet | XINYA XY2500V-C(5.08)-9PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 9; straigh |
| tierMinQty2 | 25 |
| tierMinQty3 | 100 |
| tierMinQty4 | 500 |
| tierMinQty5 | 2000 |
| tierPrice1 | 0.4 |
| tierPrice2 | 0.364 |
| tierPrice3 | 0.345 |
| tierPrice4 | 0.309 |
| tierPrice5 | 0.291 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways, Number of pins | 9 |
| Spatial orientation | straight |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Connector pinout layout | 1x9 |
| Current rating | 15A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Locking system | friction lock |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Connector variant | without side walls |
| Height | 12mm |
| Connectors features | assembling possibility |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5-PB-9P-GN | 5 | 2913 | 5 | 5 @ $0.40, 25 @ $0.36, 100 @ $0.34, 500 @ $0.31, 2000 @ $0.29 |
