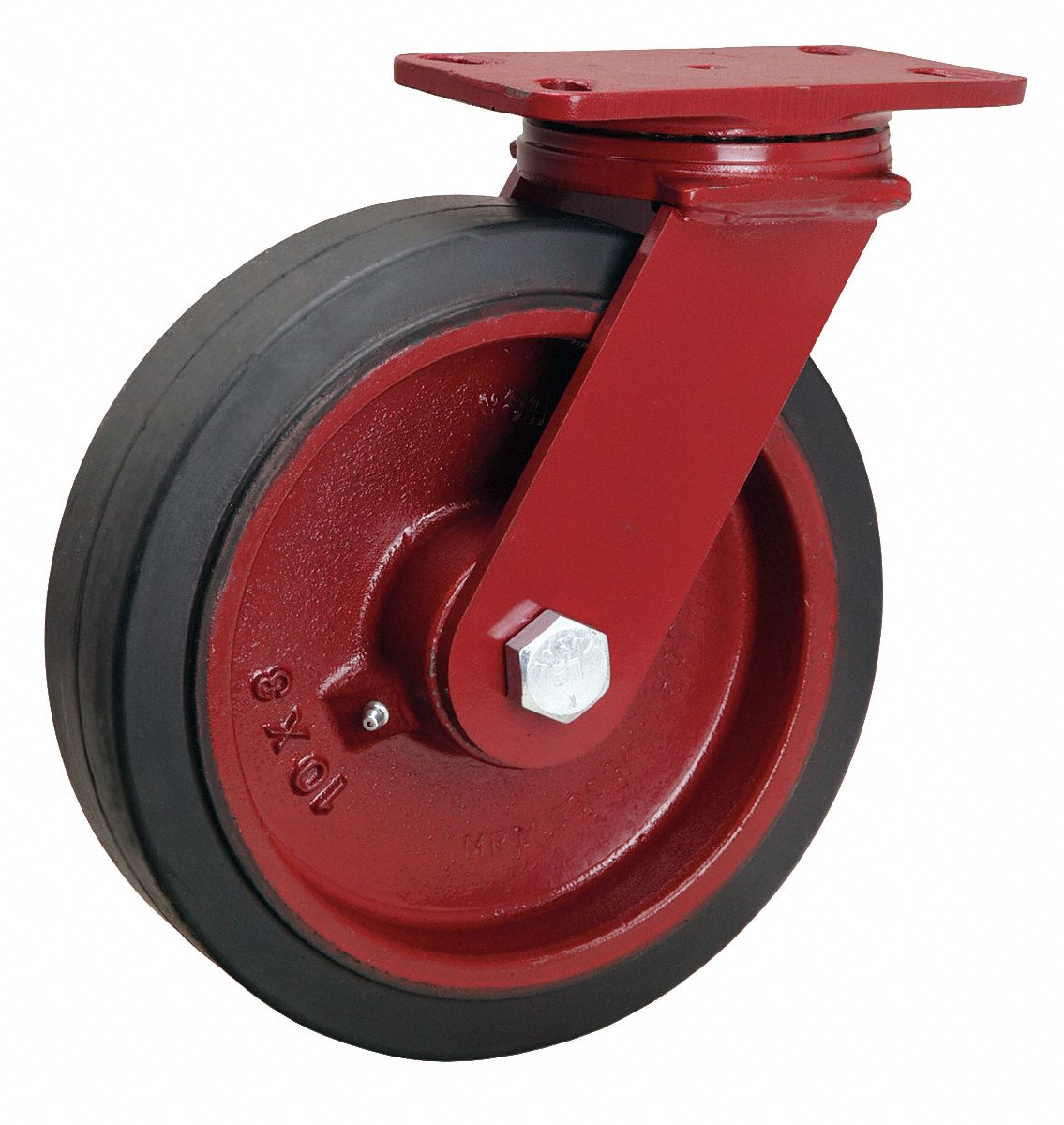

PLTE CASTER,SWVL,RUBR,10 IN.,790LBS.,BLK

GRAINGER APPROVED . S-FM-10RB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGRAINGER APPROVED
DimensionUnitinch
Extra Product NamePLTE CASTER,SWVL,RUBR,10 IN.,790LBS.,BLK
UNSPSC31162701
Weight23.7
WeightUnitlbs
diameter, length10.0
height11.5
height_AttribMounting Height
length_AttribWheel Dia.
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-FM-10RB
originalCurrency{'currency': 'CAD', 'tierPrice1': '384.06'}
qtyInStock0
SKUWWG1VHU7
tierPrice1278.75305235999997
width2.5
width_AttribWheel Width
ItemStandard Plate Caster
Swivel ConstructionKingpin
Wheel Dia10 in
Mounting Height11 1/2 in
Wheel/Tread Hardness RatingSoft
Wheel/Tread ColorBlack
Swivel Raceway TypeSingle Ball
Mounting Plate Size4 1/2 in x 6 1/2 in
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Number of Mounting Holes4
Caster Brake TypeNo Brake Included
Caster Frame MaterialSteel
Includes Thread Guards, Non-MarkingNo
Core ColorRed
ApplicationAerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
StandardsICWM
Caster Sub-TypeSwivel
Load Rating790 lb
Wheel Width2 1/2 in
Wheel/Tread MaterialRubber
Wheel/Tread Hardness70 Shore A
Wheel Bearing TypePrecision Ball
Mounting Plate Bolt Hole PatternA
Inside Bolt Hole Spacing2-7/16 in x 4-15/16 in
Mounting Bolt Dia1/2 in
Swivel Lock TypeNo Lock Included
Frame FinishEnamel
Tread ShapeStandard
Wheel Core MaterialCast Iron
Replacement WheelMfr. No. W-1025-RB-3/4
FeaturesFloor Protective
IncludesSpanner Bushing

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caWWG1VHU7111 @ $278.75
