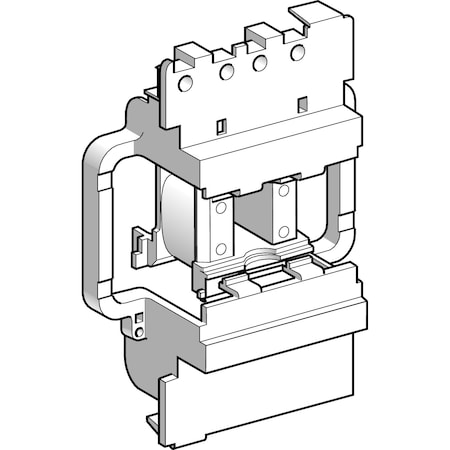

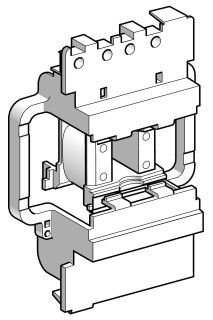

Contactor Coil 380V Ac Iec

Contactor Coil 380V Ac Iec

Schneider Electric . LX1D8Q7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSchneider Electric
CategoryId4818
CategoryIdL123
CategoryIdL217009
CategoryIdL34517
CategoryIdL417863
CategoryL1Electrical Supplies
CategoryL2Industrial Control & Automation
CategoryL3Motor Controls
CategoryL4Contactors & Contacts
DimensionUnitinch
GraingerSku48P026
Extra Product Name, snippet, ItemContactor Coil 380V Ac Iec
UPC785901637356
UnitOfMeasureEA
Weight0.06
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCZ
height, length, moq, multiple, tierMinQty1, width, Package Quantity1
jsonUrlData924526ffbdad25e5923b
MPNLX1D8Q7
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG0849978
tierPrice1118.99
urlhttps://www.zoro.com/schneider-electric-contactor-coil-380v-ac-iec-lx1d8q7/i/G0849978/
RangeTeSys
Maximum Operating Rate1200 cyc/h 60 ?C
Product Or Component Typecontactor coil
Heat Dissipation3-4.5 W 50/60 Hz
Mechanical Durability8 Mcycles
Product CompatibilityLC1D115 || LC1D150
Control Circuit TypeAC 50/60 Hz
Inductance Of Closed Circuit482.42 H
Ambient Air Temperature For Operation-5-60 ?C
Average Resistance21011 Ohm 20 ?C
Device Short NameLX1D8
Inrush Power In Va280-350 VA 60 Hz 0.9 20 ?C) || 280-350 VA 50 Hz 0.9 20 ?C)
Coil Technologywithout built-in suppressor module
Control Circuit Voltage Limitsdrop-out 0.3 to 0.5 Uc 50/60 Hz 55 ?C) || operational 0.8 to 1.15 Uc 50/60 Hz 55 ?C)
[Uc] Control Circuit Voltage380 V AC 50/60 Hz
Hold-In Power Consumption In Va2-18 VA 60 Hz 0.9 20 ?C) || 2-18 VA 50 Hz 0.9 20 ?C)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0849978111 @ $118.99
MRO Supply139796711
Allied Electronics7141705211
gordonelectricsupply.comLX1D8Q71This Item Usually Ships in 3-5 Days11 @ $84.59
sustainablesupply.comC30393631-211 @ $130.08
Newark84Y8943111 @ $100.61, 5 @ $94.51, 10 @ $83.84, 25 @ $78.63
mayerelectric.comSQDLX1D8Q7111 @ $110.20
crescentelectric.com1295082111 @ $134.44
