Kramer . TP-210

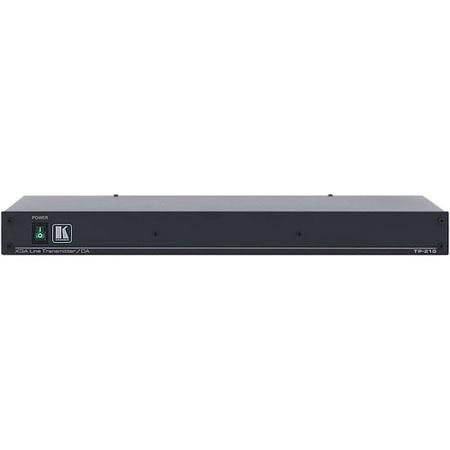

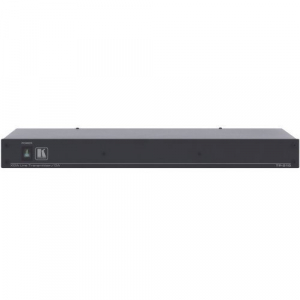

Kramer TP-210 Video Extender - 1 x 2, 10 - WUXGA - 328 ft

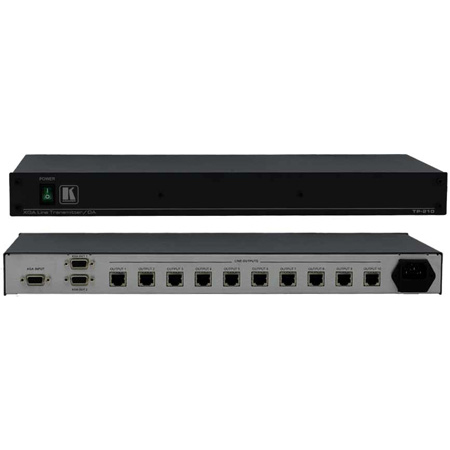

The TP-210 is a high performance distribution amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. It takes one input and provides 10 twisted pair outputs plus 2 computer graphics video outputs on 15-pin HD connectors for local monitoring. Paired Receivers: PT-120, TP-105, TP-120, VP-5R Resolution - up to UXGA HDTV Compatible Twisted Pair Connector - RJ-45 Twisted Pair Outputs - Requires a computer graphics video Twisted Pair receiver to convert the Twisted Pair signal back into a computer graphics video signal. Sync Polarity Settings - H & V switches for improved HDTV compatibility with the CAT 5 outputs. System Range (Twisted Pair) - Up to 100 meters (300) Cable (Twisted Pair) - UTP (unshielded twisted pair) such as CAT 5 Power Connect System - Only the transmitter needs to be connected to a power source. Standard 19 Rack Mount Size - 1RU. Specifications: INPUTS: 1 XGA on an HD15F connector OUTPUTS: 2 XGA on HD15F connectors; 10 CAT5 on RJ-45 connectors MAX. OUTPUT LEVEL: 1.9Vpp / 1.6Vpp RESOLUTION: Up to UXGA DIFF. GAIN: 0.03% / 2.5% DIFF. PHASE: 0.05 Deg / 0.5 Deg K-FACTOR: S/N RATIO @5MHz: CONTROLS: Level: -9.6dB to 2.4dB;EQ. @50MHz: 0 to 37.6dB, CAT5 by TP-120 COUPLING: AC/DC POWER SOURCE: 100 240 VAC, 50/60Hz, 54 VA DIMENSIONS: 19"W x 7"D, 1RU High WEIGHT: 5.5lbs. approx. (2.5 kg) ACCESSORIES: Power cord Applications: Presentation and multimedia applications Long range graphics distribution for schools, hospitals, security, and stores
