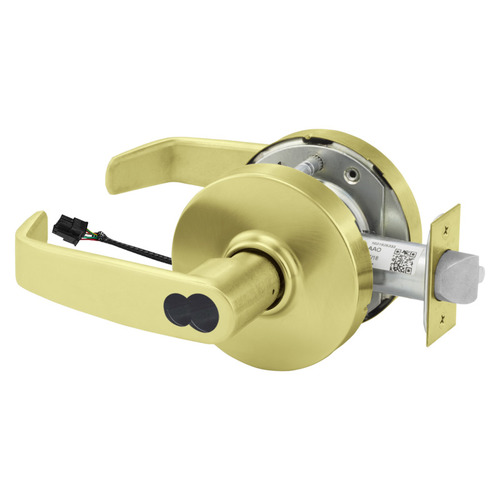

Sargent RX2860-10G71-24V LL 4 Electric Cylindrical Lock Satin Brass

Electrified Cylindrical Lock, Fail Secure, 24V, LL Design, LFIC Prep, Less Core, RX Switch, Satin Brass The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements. The 10 Line is the standard for institutional applications.

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSargent
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSargent RX2860-10G71-24V LL 4 Electric Cylindrical Lock Satin Brass
atoms, moq, multiple, tierMinQty1, Package Qty1
color, ColorSatin Brass
height9.0
height_AttribCase Height
length20.75
length_AttribCase Length
MPN, SKURX2860-10G71-24V LL 4
qtyInStock0
tierPrice11095.06
width15.0
width_AttribCase Width
Switch TypeRX
Base MaterialBrass
Strike Width1-1/4"
Strike TypeASA
Strike Number808
Strike Height4-7/8"
Special MarksFull size/large format interchangeable core, Fire rated 3 Hours {A}
ScrewsCombination
Rose/Escutcheon DesignL - Rose
Operating Voltage24VDC
Lock Face Size2-1/4" x 1-1/8"
Lever/Knob DesignL - Lever
Latch TypeDead Latch (Guarded)
Latch Number10-3192
Latch Backset Dim2-3/4"
Case Width15"
Case Volume2801.25
Case Height9"
Bolt Protection1/2"
Amp Draw250mA
Package Width7.125"
Package Volume249.8203125
Package Length8.25"
Package Height4.25"
BAA QualifiedYes
OriginUSA
Fire Rated3 Hours {A}
Cylinder TypeSargent LFIC Prep Less Core
Door Thickness1-3/4" to 2"
Function71-Electromechanical Fail Secure
Case Length20.75"
Color Code606/US4
PowerHard Wired
HandNon Handed
GradeGrade 1
